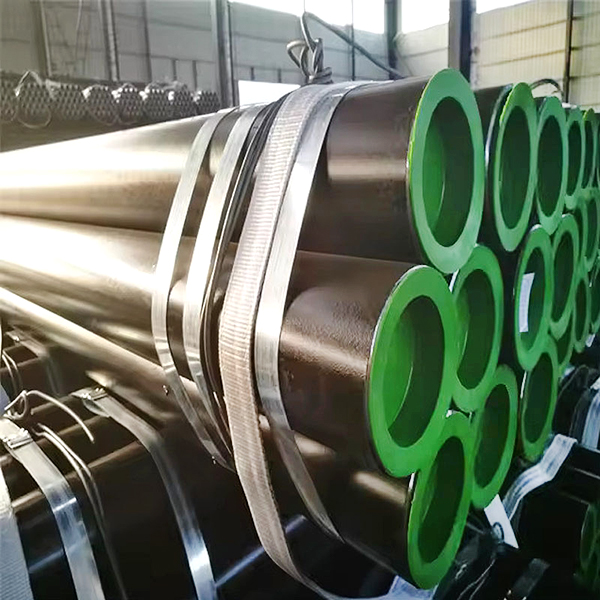

API Spec 5L Steel Pipe
- China
- 15-25 Working Days
- Factory Direct Supply
API Spec 5L is an international standard that specifies the manufacturing requirements for two product specification grades (PSL 1 and PSL 2) of seamless and welded steel pipes used in pipeline transportation systems in the oil and gas industry.
E-mail：
admin@jinshugc.com
WhatsApp：
8615315750155

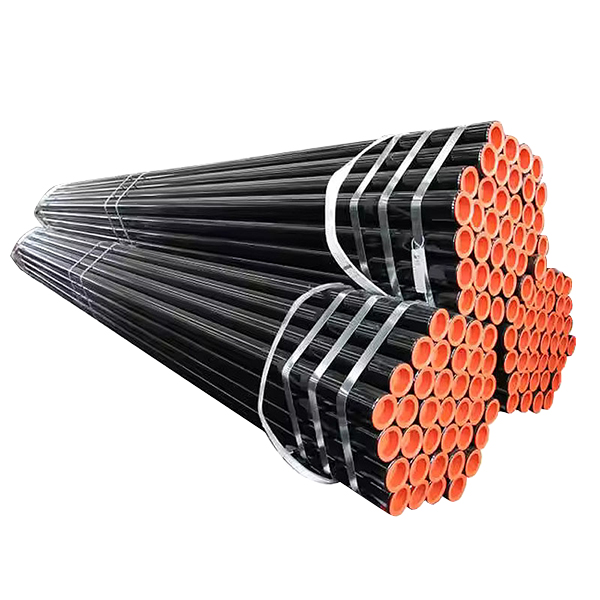

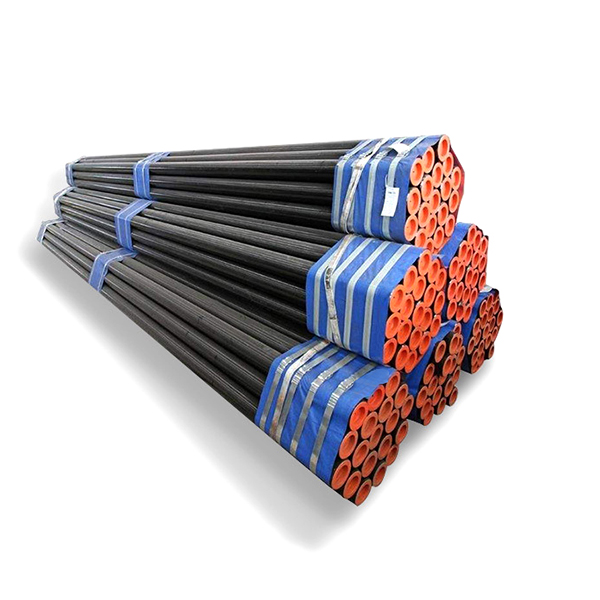

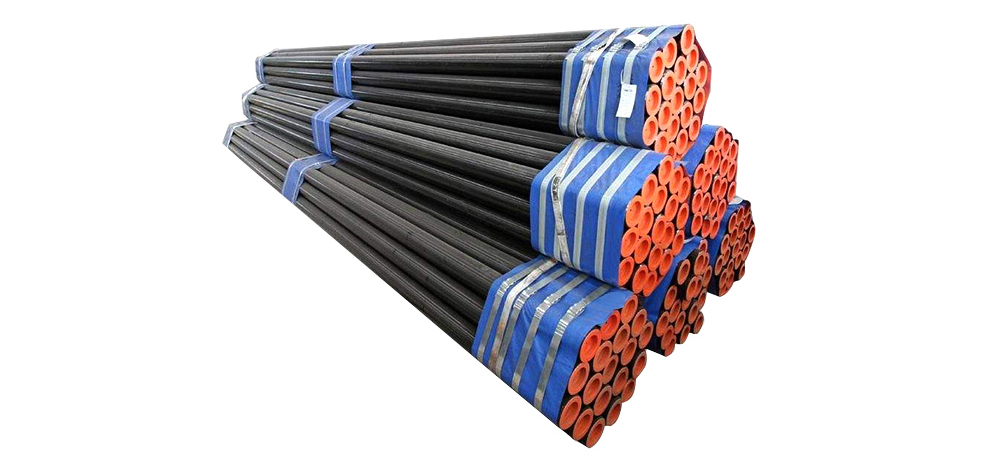

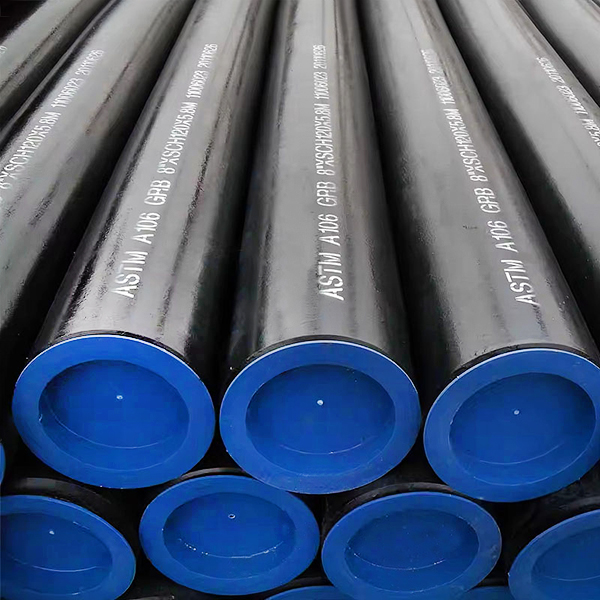

API Spec 5L Steel Pipe
API Spec 5L is an international standard that specifies the manufacturing requirements for two product specification grades (PSL 1 and PSL 2) of seamless and welded steel pipes used in pipeline transportation systems in the oil and gas industry.
API Spec 5L Steel Pipe Description
API-5L welded spiral steel pipe is made of hot-rolled strip or steel plate as raw material. The strip or steel plate is rolled into a round or special-shaped steel pipe by a forming machine, and then the formed steel pipe is butt welded by a high-frequency welding unit. PSL1 and PSL2 pipelines have different levels of quality requirements. This kind of steel pipe has the advantages of high strength, high toughness, corrosion resistance, and easy welding. API Spec 5L steel pipes are commonly used to manufacture pipeline steel pipes in the oil and gas industry.
Product Parameters
Product Name | API Spec 5L Steel Pipe | |
Standard | EN/DIN/JIS/ASTM/BS/ASME/AISI etc. | |
Outer Diameter | Seamless: 1/4"-36" | Welding: 21.3mm-3620mm |
Round Tube: 1/2"-10" | Square Tube/Rectangular Tube: 15x15mm-400x600mm | |
Wall Thickness | Seamless: 1.25mm-50mm | Welding: 1.65mm-65mm |
Length | 3-12 meters, Support customization | |
Surface Process | Bright, Polished, Black | |
Other Services | Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc. | |
Chemical Composition
API Spec 5L PSL 1 | Brand | C | Mn | P | S |
B | ≤ 0.28 | ≤ 1.20 | ≤ 0.030 | ≤ 0.030 | |
X42 | ≤ 0.28 | ≤ 1.30 | ≤ 0.030 | ≤ 0.030 | |
X46 | ≤ 0.28 | ≤ 1.40 | ≤ 0.030 | ≤ 0.030 | |
X52 | ≤ 0.28 | ≤ 1.40 | ≤ 0.030 | ≤ 0.030 | |
API Spec 5L PSL 2 | B | ≤ 0.24 | ≤ 1.20 | ≤ 0.025 | ≤ 0.015 |
X42 | ≤ 0.24 | ≤ 1.30 | ≤ 0.025 | ≤ 0.015 | |
X46 | ≤ 0.24 | ≤ 1.40 | ≤ 0.025 | ≤ 0.015 | |
X52 | ≤ 0.24 | ≤ 1.40 | ≤ 0.025 | ≤ 0.015 |
Mechanical Properties
Standard | Brand | Yield Strength (MPa) | Tensile Strength (MPa) |
API Spec 5L PSL 1 | A25 | 172 | 310 |
A | 207 | 331 | |
B | 241 | 414 | |
X42 | 290 | 414 | |
X46 | 317 | 434 | |
X52 | 359 | 455 | |
X56 | 386 | 490 | |
X60 | 414 | 517 | |
X65 | 448 | 531 | |
X70 | 483 | 565 | |
API Spec 5L PSL 2 | B | 290-496 | 414-758 |
X42 | 317-524 | 434-758 | |
X46 | 359-531 | 455-758 | |
X52 | 386-544 | 490-758 | |
X56 | 414-565 | 517-758 | |
X60 | 448-600 | 531-758 | |
X65 | 483-621 | 565-758 | |
X70 | 552-690 | 621-827 |
Materials No. | European Standard EN 10208-2 | German Standard DIN 17172 | API 5L |
1.0457 | L 245NB | StE 240.7 | Gr.B |
1.0484 | L 290NB | StE 290.7 | X42 |
1.0582 | L 360NB | StE 360.7 | X52 |
1.8972 | L 415NB | StE 415.7 | X60 |
1.0418 | L 245MB | StE 240.7 TM | Gr.B |
1.0429 | L 290MB | StE 290.7 TM | X42 |
1.0578 | L 360MB | StE 360.7 TM | X52 |
1.8973 | L 415MB | StE 415.7 TM | X60 |
1.8975 | L 450MB | StE 445.7 TM | X65 |
1.8977 | L 485MB | StE 480.7 TM | X70 |
Scope of Application
API Spec 5L specifies the manufacture of two product levels (PSL1 and PSL2). PSL refers to the product specification level established for the API 5L standard. Piping specification classes are classified into PSL1 and PSL2. For pipeline standards, PSL1 and PSL2 pipelines have different levels of quality requirements. API Spec 5L pipeline steel plate is used to manufacture pipeline steel pipes that extract oil, steam, and water on the ground in the oil and gas industry.

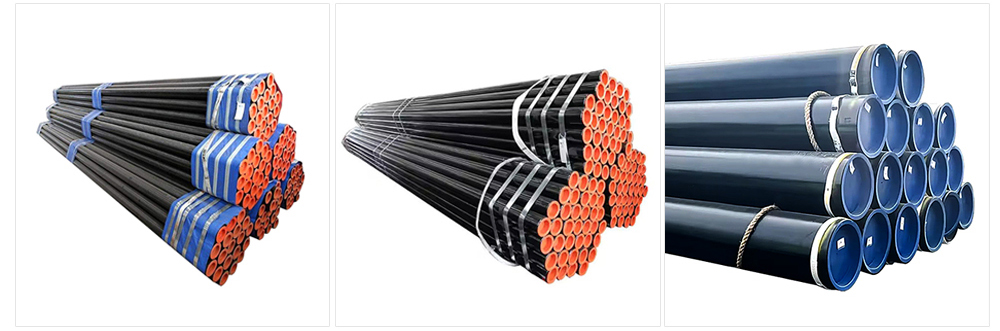

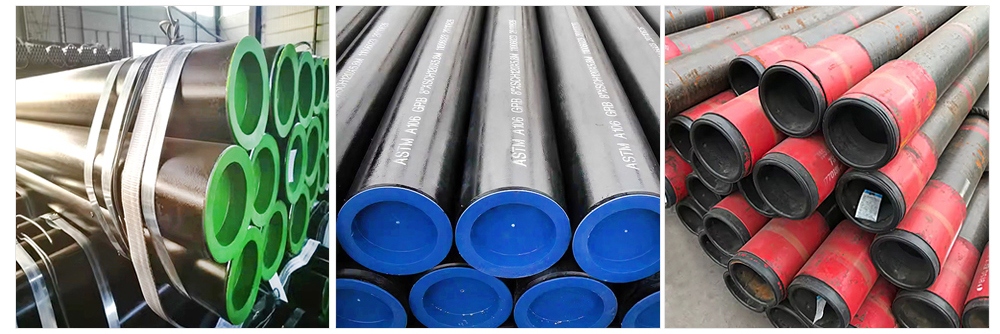

Product Show
Cooperative Client

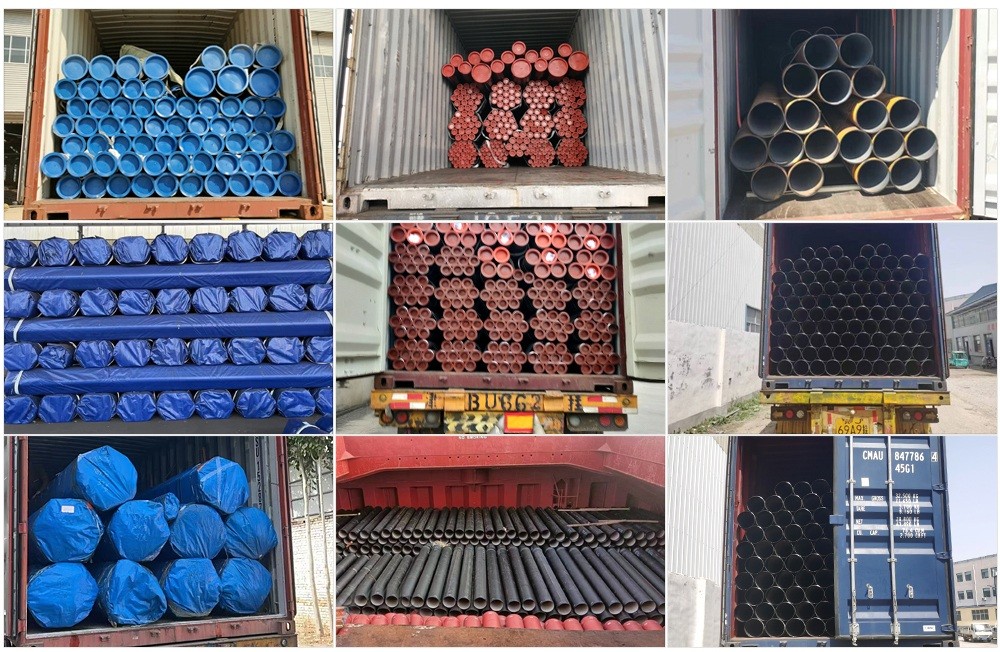

Packing And Shipping
Participate In Exhibition
