201 Stainless Steel Bar

201 stainless steel is the steel that is resistant to the corrosion of weak media such as atmosphere, steam and water, while acid resistant steel refers to the steel that is resistant to the corrosion of chemical corrosive media such as acid, alkali and salt.

E-mail： admin@jinshugc.com

WhatsApp： 8615315750155

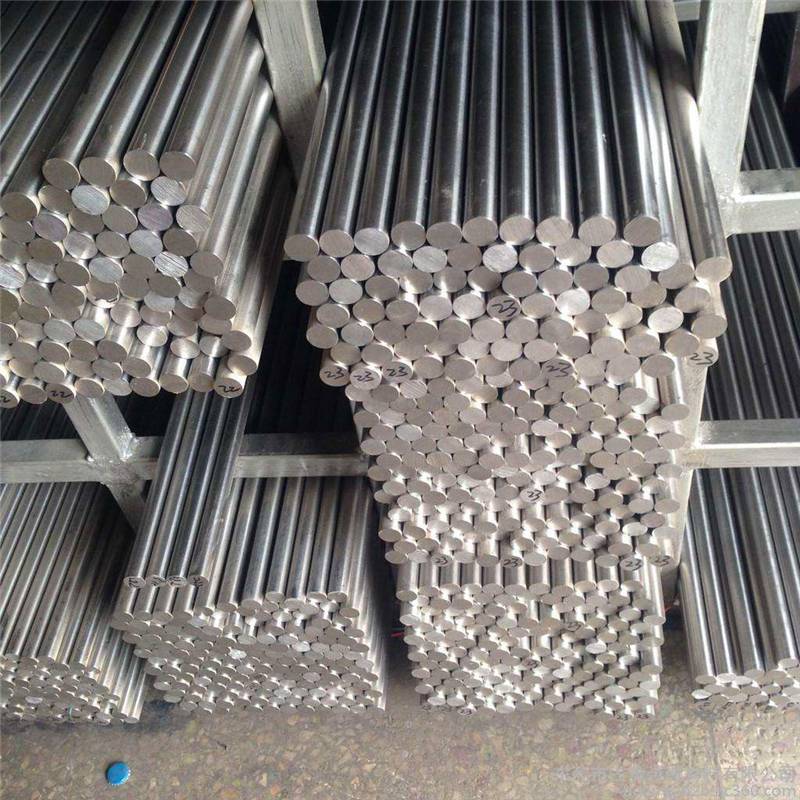

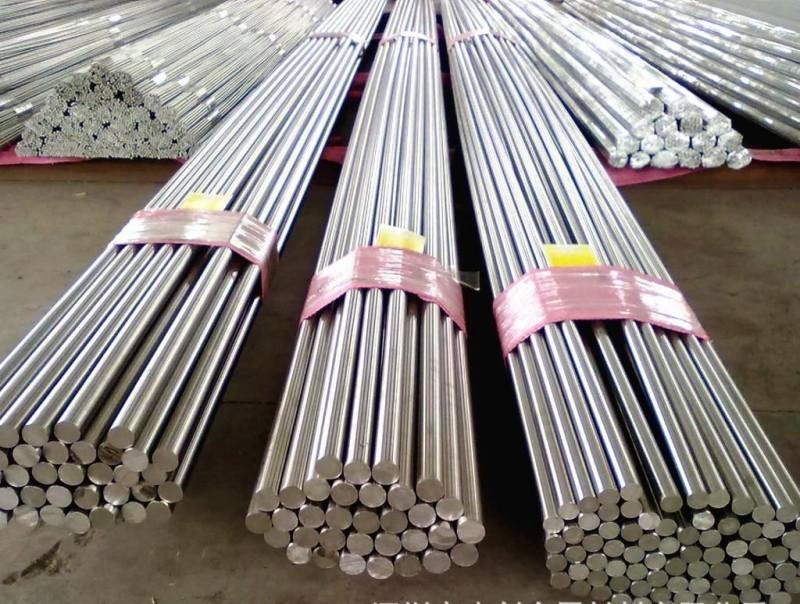

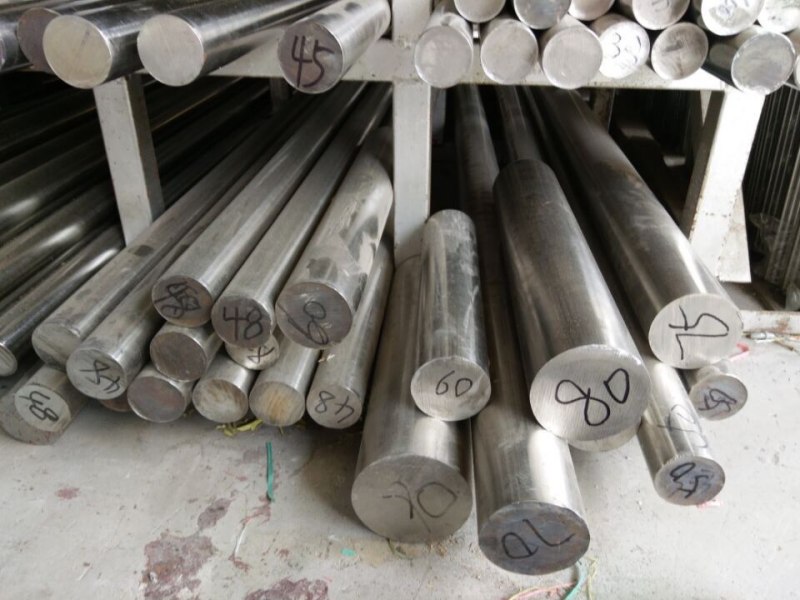

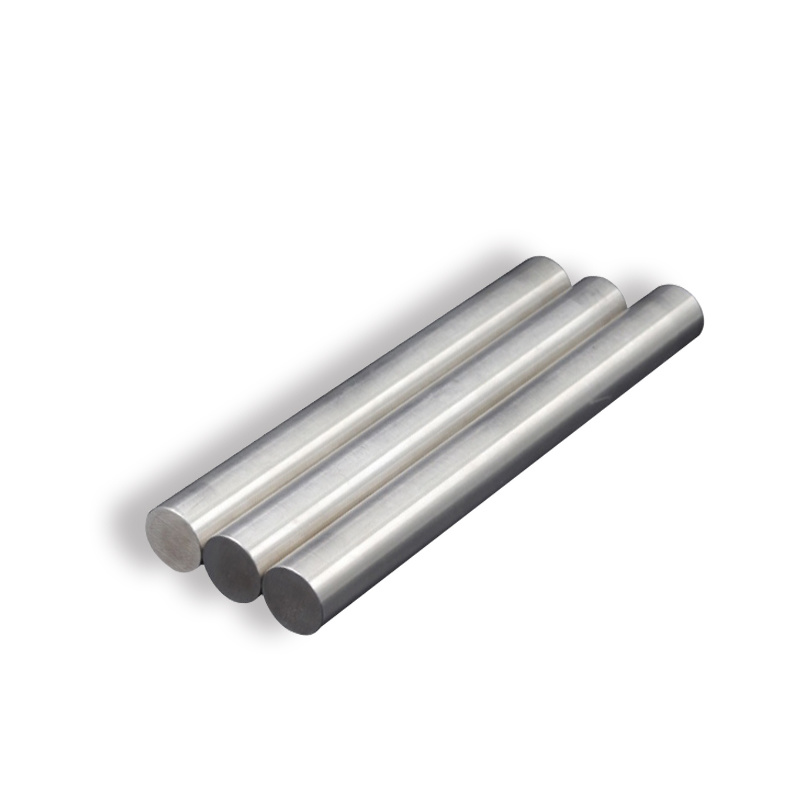

201 Stainless Steel Bar Description

201 stainless steel bar is composed primarily of iron with between 16 and 18% chromium and less than 0.15% carbon. It also contains small amounts of manganese, nickel, silicon, nitrogen, and copper. In addition, it can be hardened by cold working processes but not heat-treated like 304 or 316 grades, since it has higher formability than the 300 series grades. 201 stainless steel bar has high manganese but low nickel content. So its corrosion resistance is not as superior as 300 series. 201 stainless steel bars are widely used as parts in manufacturing kitchenware, outdoor decoration engineering, urban decoration industry and low-grade household products. They are also used in medical instruments and automotive parts that require flexibility while maintaining strength under pressure.

Product Parameters

Product Name		201 Stainless Steel Bar
Type		Steel Bar
Outer Diameter	Round Bar	4mm-500mm
	Hexagon Bar	18mm-57mm (11/16″ to 2-3/4″)
	Square Bar	18mm-47mm (11/16″ to 1-3/4″)
	Flat Steel	1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Mattness Surface Treatment, No. 4. BA, etc.
Scope of Application		Stainless steel bars are used in a variety of industries such as shipbuilding, Defense, Automotive, Textiles, Paper and pulp, Manufacturing, Cement, Heavy earthmoving equipment and construction, etc.

Chemical Composition

C	Si	Mn	Cr	Ni	S	P
≤ 0.15	≤ 0.75	5.50~7.50	16.00~18.00	3.50~5.50	≤ 0.03	≤ 0.06

Mechanical Properties

Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
≥ 520	≥ 275	≥55-60	≤ 183HB；≤ 100 HRB

Physical Performance

Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(μohm.in)
7.8	197	15.7	16.2	27
