304L Stainless Steel Pipe
- China
- 15-25 Working Days
- Factory Direct Supply
304L stainless steel has a very similar chemical composition to 304 stainless steel with one key difference. The maximum carbon content is set at 0.08% for 304, whereas grade 304L stainless steel has a maximum carbon content of 0.03%. It is more often adopted in the production of equipment and parts that require better corrosion resistance.
E-mail：
admin@jinshugc.com
WhatsApp：
8615315750155
304L Stainless Steel Pipe
304L stainless steel has a very similar chemical composition to 304 stainless steel with one key difference. The maximum carbon content is set at 0.08% for 304, whereas grade 304L stainless steel has a maximum carbon content of 0.03%. It is more often adopted in the production of equipment and parts that require better corrosion resistance.
304L Stainless Steel Pipe Description
304L stainless steel pipe is a variant of 304 stainless steel pipe with a lower carbon content and is often used in welding scenarios. The lower carbon content greatly reduces the precipitation of carbides in the heat-affected zone close to the weld, and the precipitation of carbides is associated with intergranular corrosion of stainless steel in certain environments. Basically, the need to anneal weld joints prior to using the completed metal form is not needed using 304L, saving time and effort. Generally speaking, both 304 and 304L stainless steel plates can be used for many of the same applications. The differences are often not significant enough that one is considered more useful over the other. 304L stainless steel plate is more commonly used in fields such as food processing equipment, building materials, automobile parts.
Product Parameters
Product Name | 304L Stainless Steel Pipe | |
Type | Steel Pipe | |
Outer diameter | Round Tube | 4mm-200mm |
Square Tube | 10*10mm-100*100mm | |
Rectangular Tube | 10*20mm-50*100mm | |
Wall Thickness | 0.6mm-6.0mm | |
Length | 1-6 meters, Length can be customized | |
Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. | |
Surface | Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc. | |
Scope of Application | Common applications for stainless steel pipes include food processing, Textile operations, Breweries, Water treatment plants, Oil and gas processing, Fertilizers and pesticides, Chemical applications, Construction, Pharmaceuticals, Auto parts, etc. | |
Certificate | ISO, SGS, BV, etc. | |
Production Technology | Hot Rolling, Cold Rolling | |
Edge Processing | Edging, Trimming | |
Chemical Composition
C | Si | Mn | Cr | Ni | S | P |
≤ 0.03 | ≤1.0 | ≤ 2.0 | 18.0～20.0 | 8.0～12.0 | ≤ 0.03 | ≤ 0.035 |
Mechanical Properties
Tensile Strength Kb (MPa) | Yield Strength σ0.2 (MPa) | Elongation D5 (%) | Hardness |
≥ 520 | ≥ 205 | ≥ 40 | ≤ 187HB ;≤ 90HRB;≤ 200HV |
Physical Performance
Density(g/cm³) | Modulus of Elasticity(Gpa) | Coefficient of Thermal Expansion(10-6/°C) | Coefficient of Thermal Conductivity(W/m*K) | Resistivity(ΜΩ. cm) |
8.03 | 193 | 16.9 | 16.2 | 72 |

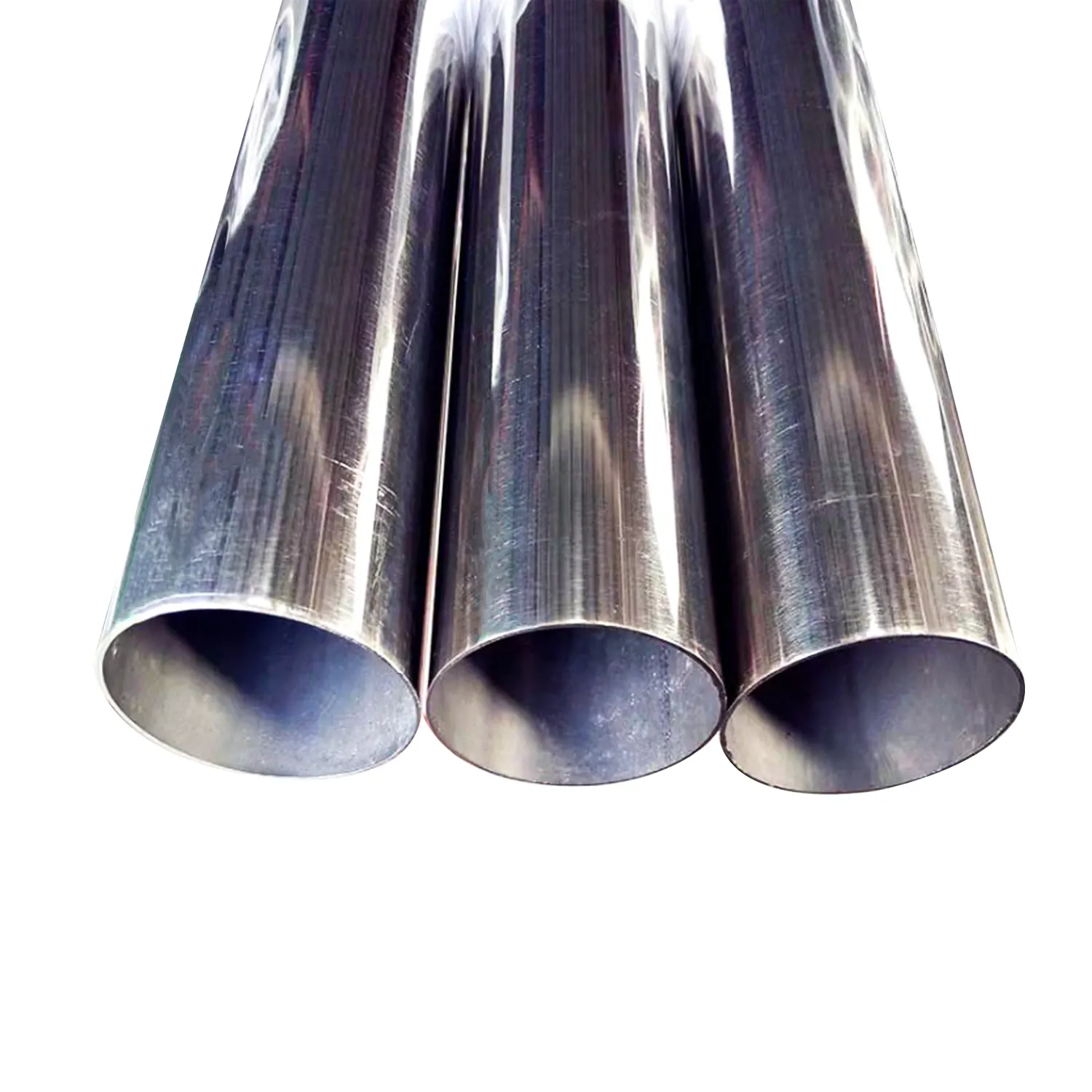

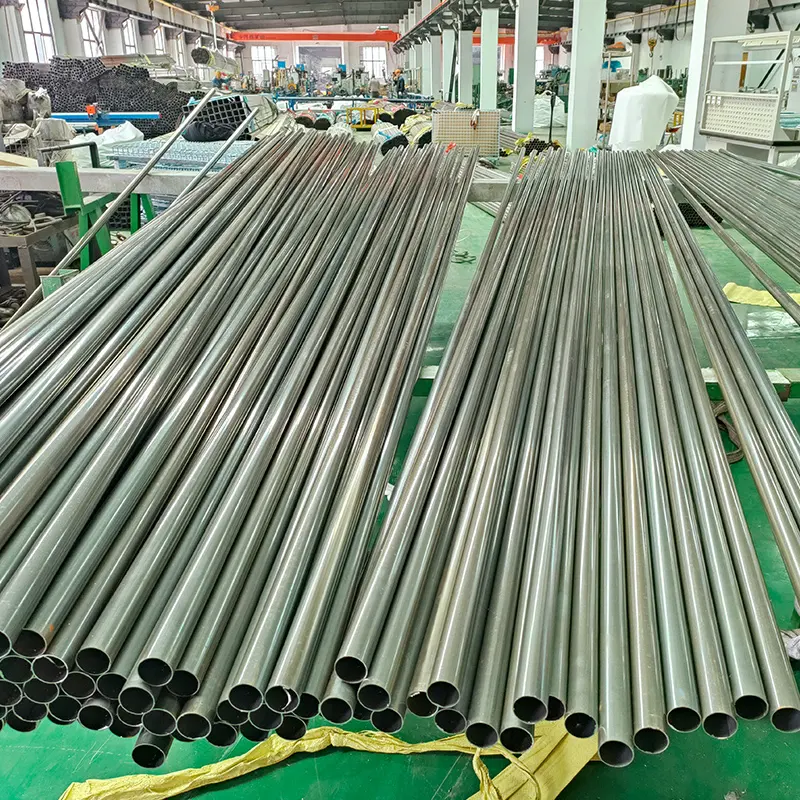

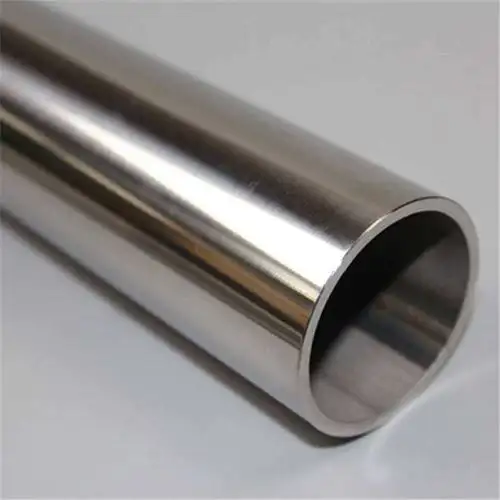

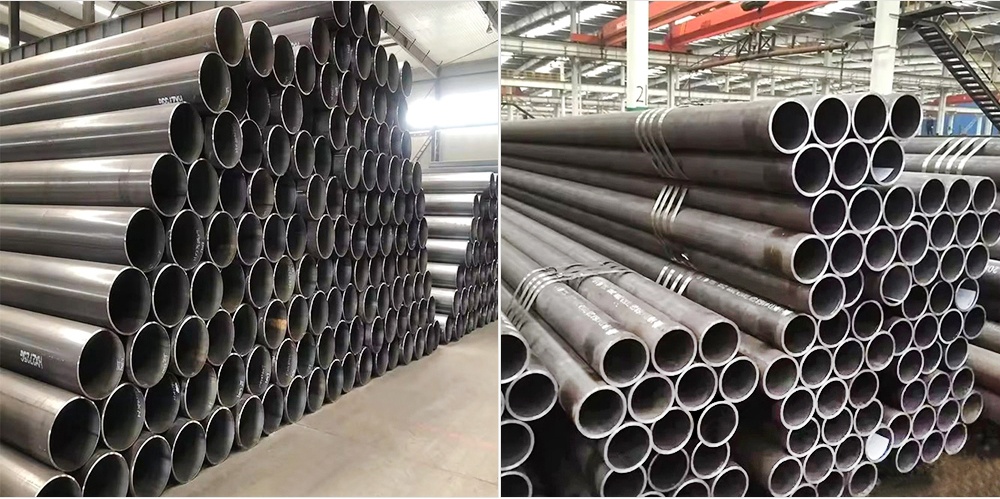

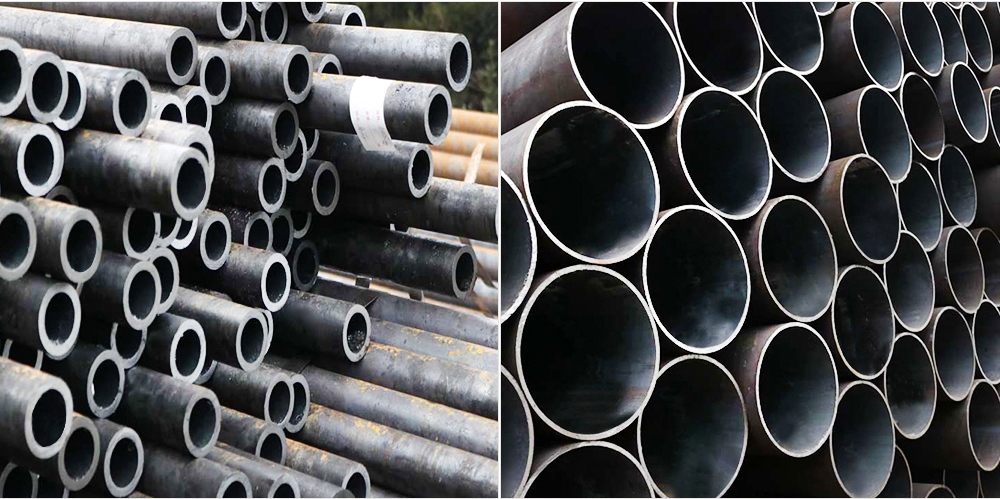

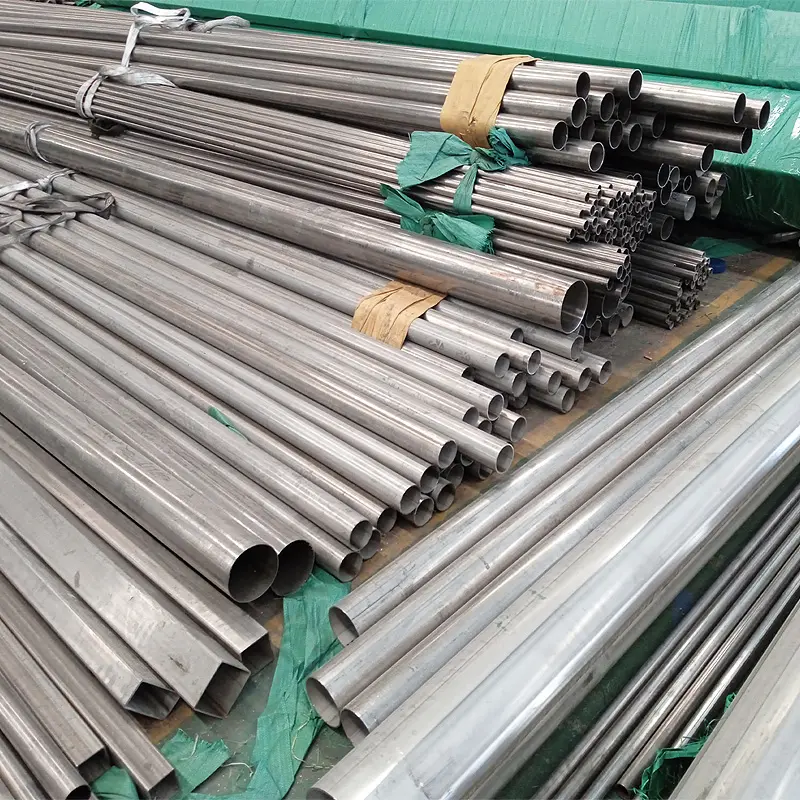

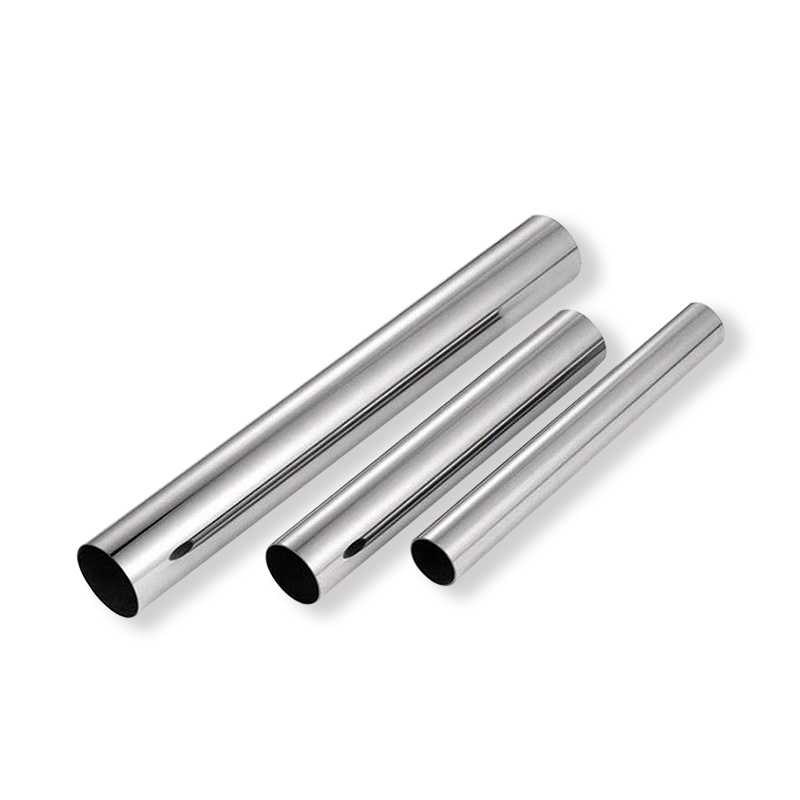

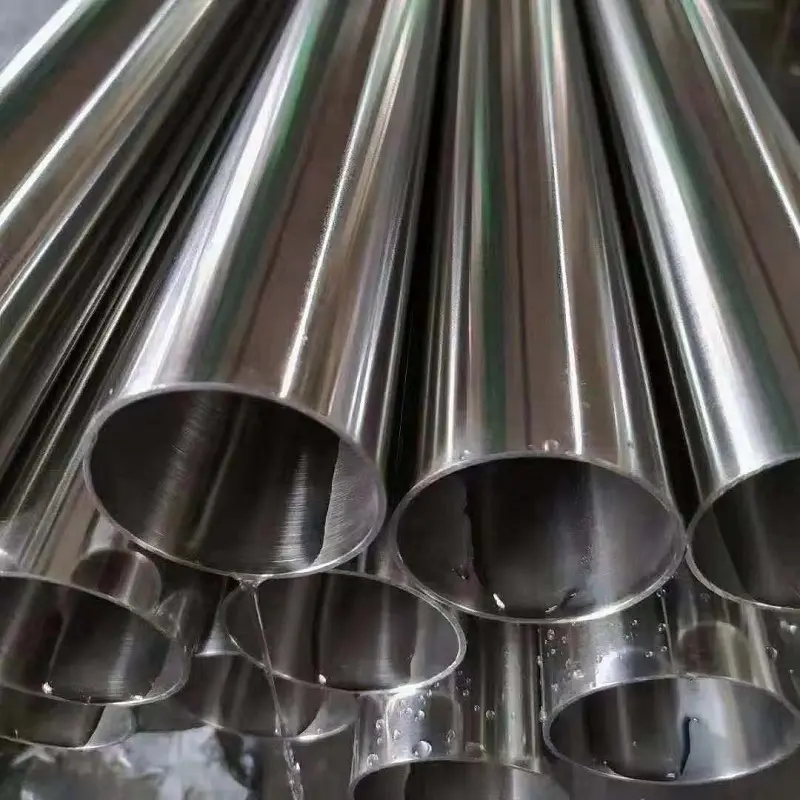

Product Show
Cooperative Client
Packing And Shipping
Participate In Exhibition
