A192 Seamless Carbon Steel Pipe
- China
- 15-25 Working Days
- Factory Direct Supply
ASTM A192 is the same as ASME SA-192 and is the standard specification covering seamless carbon steel boiler and superheater tubes of minimum wall thickness for high pressure service.
E-mail：
admin@jinshugc.com
WhatsApp：
8615315750155
A192 Seamless Carbon Steel Pipe
ASTM A192 is the same as ASME SA-192 and is the standard specification covering seamless carbon steel boiler and superheater tubes of minimum wall thickness for high pressure service.
A192 Seamless Carbon Steel Pipe Description
ASTM A192 steel pipe is made of a high pressure seamless carbon steel used in super heaters, water wall panels, heat exchangers, condensers, marine application, refineries, paper pulping, petrochemical applications, pressure vessels, and general engineering applications. It is also used in coal, thermal and oil power generation plants. The A192 carbon steel pipes shall be made by the seamless process and shall be either hot-finished or cold-finished. Hot-finished tubes do not need to be heat treated.
Product Parameters
Product Name | A192 Seamless Carbon Steel Pipe | |
Standard | EN/DIN/JIS/ASTM/BS/ASME/AISI etc. | |
Outer Diameter | Seamless: 1/4"-36" | Welding: 21.3mm-3620mm |
Round Tube: 1/2"-10" | Square Tube/Rectangular Tube: 15x15mm-400x600mm | |
Wall Thickness | Seamless: 1.25mm-50mm | Welding: 1.65mm-65mm |
Length | 3-12 meters, Support customization | |
Surface Process | Bright, Polished, Black | |
Other Services | Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc. | |
Chemical Composition
C, % | Mn, % | Si, % | P, % | S, % |
0.06-0.18 | 0.27-0.63 | 0.25 max | 0.035 max | 0.035 max |
Mechanical Properties
Tensile Strength MPa | Yield Strength MPa | Elongation % | Hardness HB, wt≥ 5.1mm | Hardness HRB, WT＜ 5.1mm |
325 min | 180 min | 35 min | 137 max | 77 max |
Scope of Application
Seamless carbon steel boilers for high pressure, superheater tubes, etc.

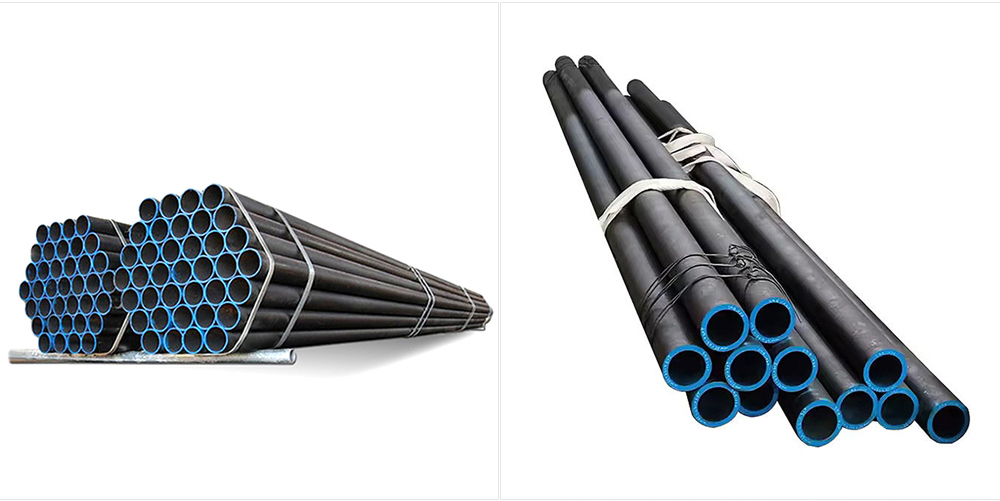

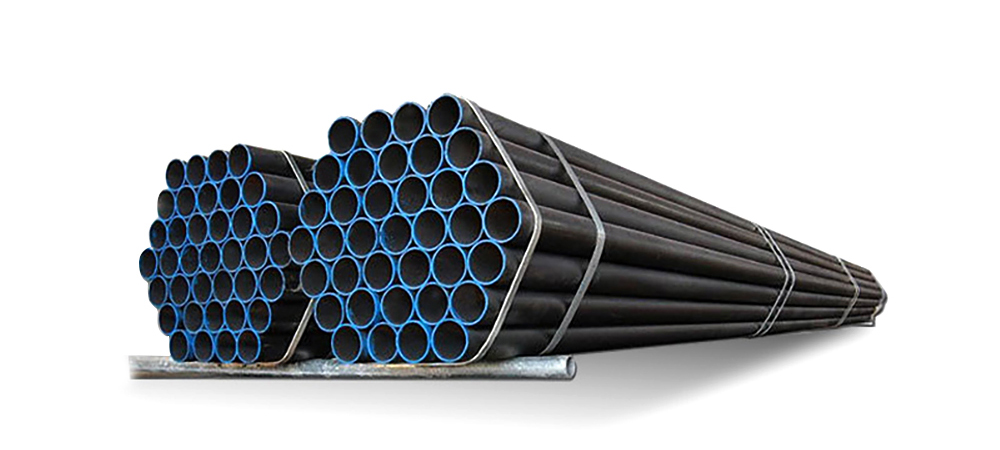

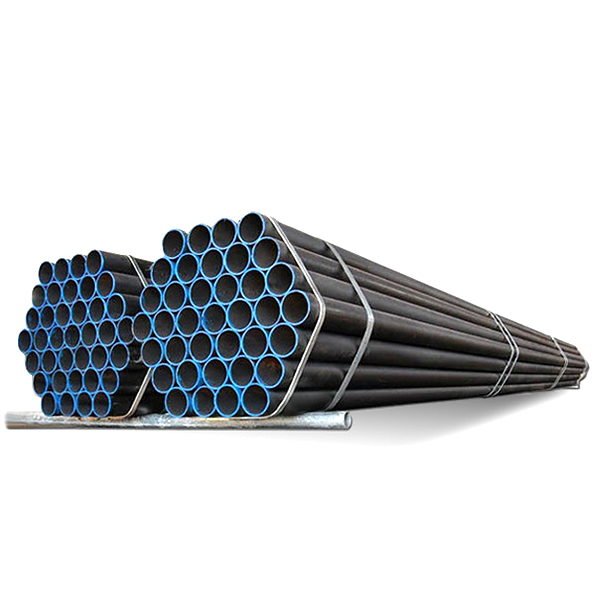

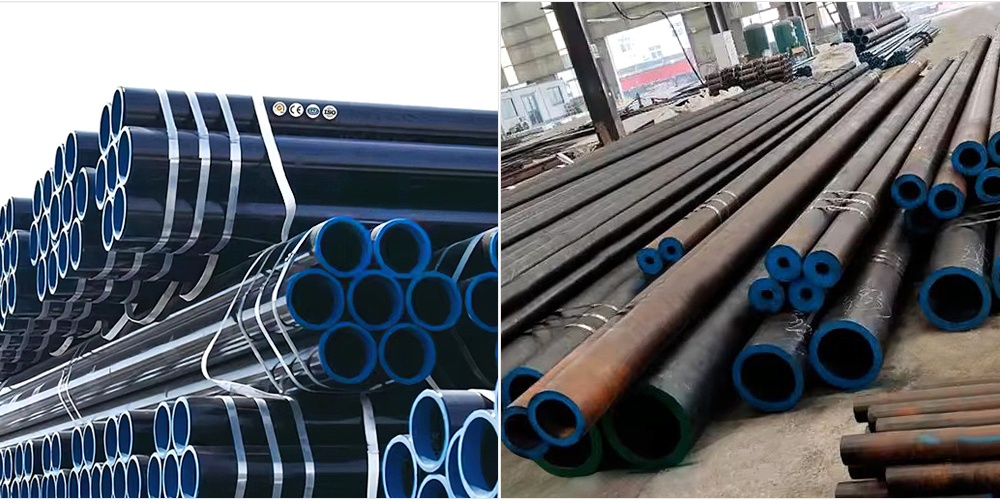

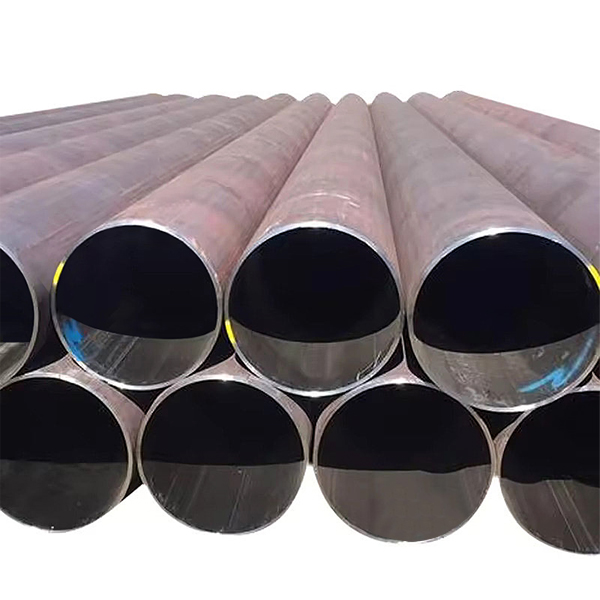

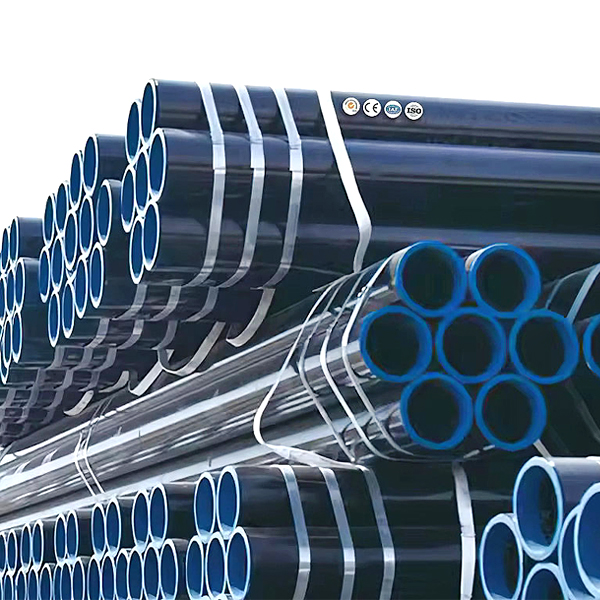

Product Show
Cooperative Client
Packing And Shipping
Participate In Exhibition
