A213 Seamless Carbon Steel Pipe
- China
- 15-25 Working Days
- Factory Direct Supply
A213 is a ferrite and austenitic alloy seamless steel pipe for boilers, superheaters and heat exchangers. Its products should comply with TSG D7002 pressure piping component type test rules.
E-mail：
admin@jinshugc.com
WhatsApp：
8615315750155
A213 Seamless Carbon Steel Pipe
A213 is a ferrite and austenitic alloy seamless steel pipe for boilers, superheaters and heat exchangers. Its products should comply with TSG D7002 pressure piping component type test rules.
A213 Seamless Carbon Steel Pipe Description
ASTM A213 or ASME SA213 seamless tube is applicable to seamless ferritic and austenitic pipes with the minimum thickness in boiler and superheater. It is typically used as heating surface pipe, boiler header and steam pipe in low and medium pressure boilers. This seamless steel pipe is widely applied in heat exchanger, condenser and heat transfer equipment. Selecting a steel pipe suitable for a specific application requires comprehensive consideration of multiple factors such as temperature, pressure, flow, material quality, corrosion protection and welding installation to ensure that the steel pipe can operate safely and reliably in the application scenario.
Product Parameters
Product Name | A213 Seamless Carbon Steel Pipe | |
Standard | EN/DIN/JIS/ASTM/BS/ASME/AISI etc. | |
Outer Diameter | Seamless: 1/4"-36" | Welding: 21.3mm-3620mm |
Round Tube: 1/2"-10" | Square Tube/Rectangular Tube: 15x15mm-400x600mm | |
Wall Thickness | Seamless: 1.25mm-50mm | Welding: 1.65mm-65mm |
Length | 3-12 meters, Support customization | |
Surface Process | Bright, Polished, Black | |
Other Services | Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc. | |
Chemical Composition
A213 | C | Si | Mn | P,S Max | Cr | Mo | V | Al Max | Nb |
T2 | 0.10-0.20 | 0.10-0.30 | 0.30-0.61 | 0.025 | 0.50-0.81 | 0.44-0.65 | - | - | - |
T11 | 0.05-0.15 | 0.50-1.00 | 0.30-0.60 | 0.025 | 1.00-1.50 | 0.44-0.65 | - | - | - |
T12 | 0.05-0.15 | Max 0.5 | 0.30-0.61 | 0.025 | 0.80-1.25 | 0.44-0.65 | - | - | - |
T22 | 0.05-0.15 | Max 0.5 | 0.30-0.60 | 0.025 | 1.90-2.60 | 0.87-1.13 | - | - | - |
T91 | 0.07-0.14 | 0.20-0.50 | 0.30-0.60 | 0.02 | 8.0-9.5 | 0.85-1.05 | 0.18-0.25 | 0.015 | 0.06-0.10 |
T92 | 0.07-0.13 | Max 0.5 | 0.30-0.60 | 0.02 | 8.5-9.5 | 0.30-0.60 | 0.15-0.25 | 0.015 | 0.04-0.09 |
Mechanical Properties
A213 | Tensile Strength | Yield Strength | Elongation | Hardness |
T2 | ≥ 415 MPa | ≥ 205 MPa | ≥ 30 % | 163 HBW (85 HRB) |
T11 | ≥ 415 MPa | ≥ 205 MPa | ≥ 30 % | 163 HBW (85 HRB) |
T12 | ≥ 415 MPa | ≥ 220 MPa | ≥ 30 % | 163 HBW (85 HRB) |
T22 | ≥ 415 MPa | ≥ 205 MPa | ≥ 30 % | 163 HBW (8 5HRB) |
T91 | ≥ 585 MPa | ≥ 415 MPa | ≥ 20 % | 250 HBW (25 HRB) |
T92 | ≥ 620 MPa | ≥ 440 MPa | ≥ 20 % | 250 HBW (25 HRB) |
Scope of Application
Seamless ferritic and austenitic steel boilers, boiler tubes and heat exchanger tubes for high temperature service.

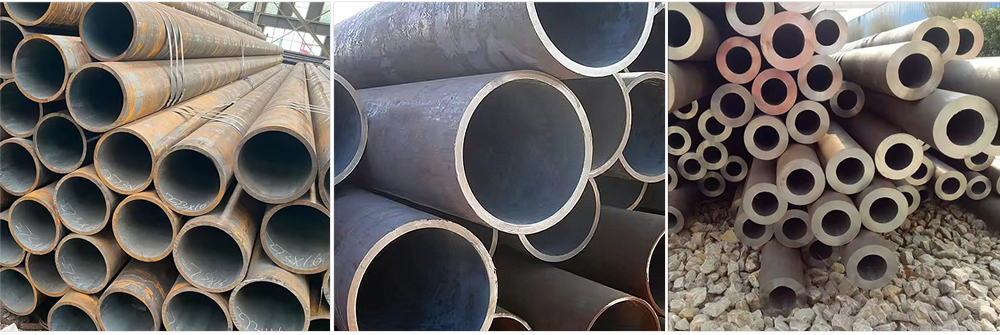

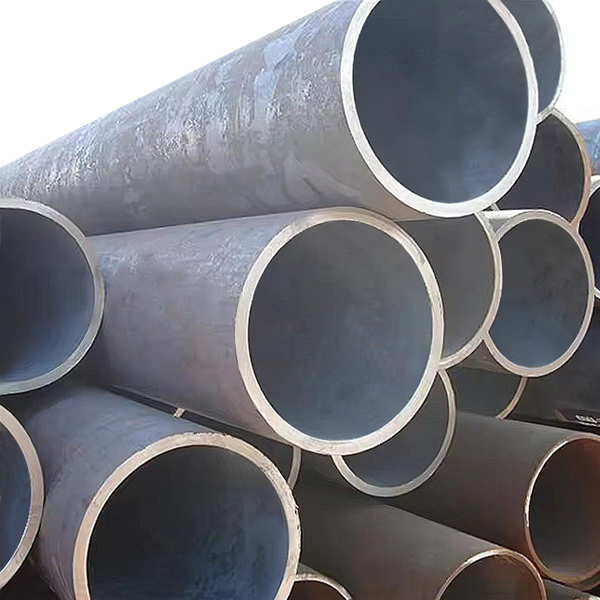

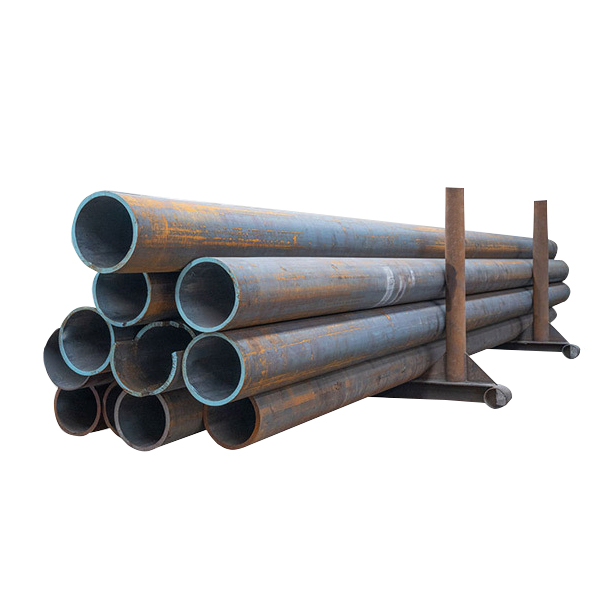

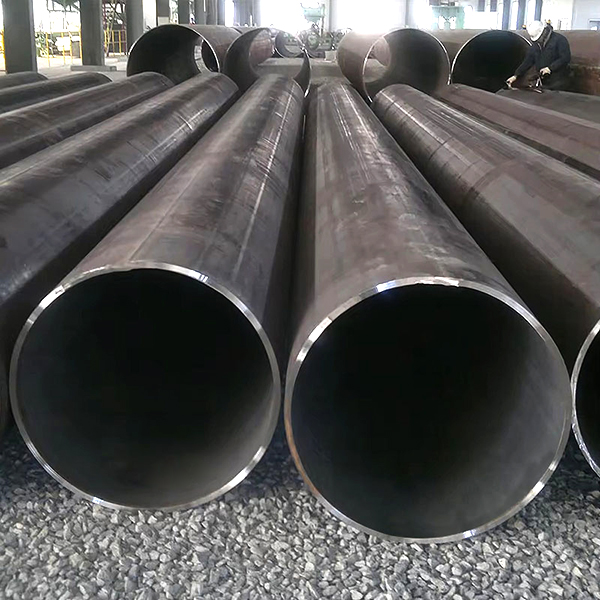

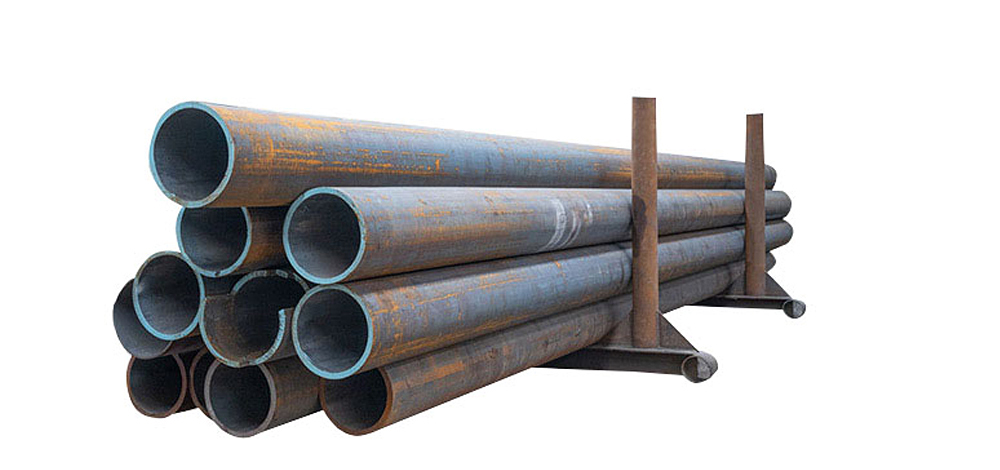

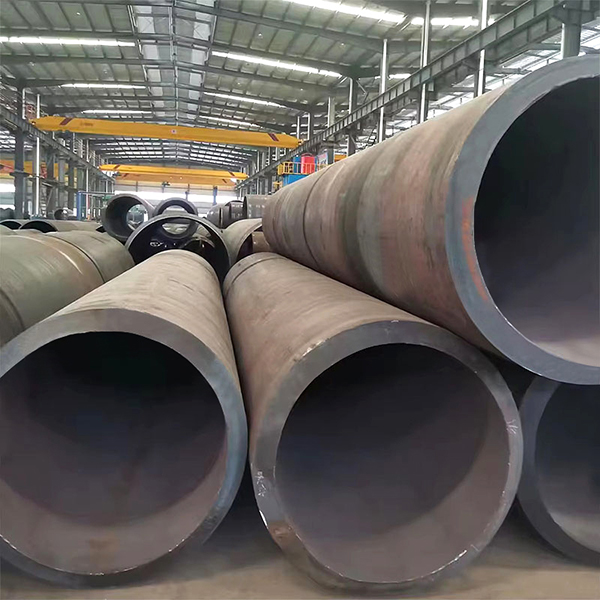

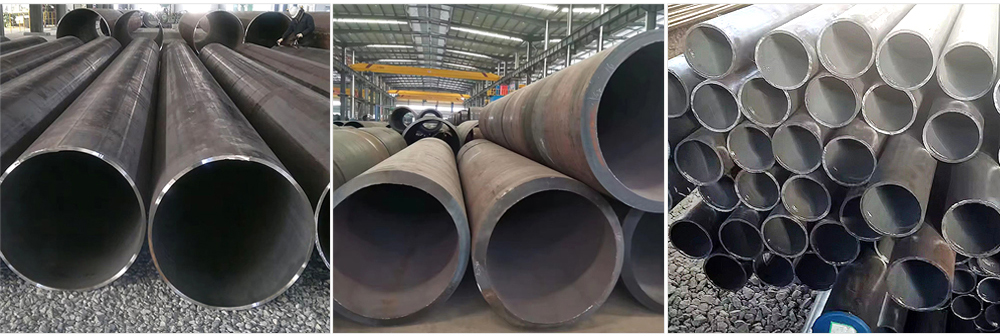

Product Show
Cooperative Client
Packing And Shipping
Participate In Exhibition
