API 5CT Steel Pipe
- China
- 15-25 Working Days
- Factory Direct Supply
API is an acronym for the American Petroleum Institute and is considered the most authoritative and comprehensive principle in the oil and gas industry. API 5B and API 5CT are mainly used for oil casing. API 5CT oil casing can be divided into seamless steel pipe and welded steel pipe.
E-mail：
admin@jinshugc.com
WhatsApp：
8615315750155
API 5CT Steel Pipe
API is an acronym for the American Petroleum Institute and is considered the most authoritative and comprehensive principle in the oil and gas industry. API 5B and API 5CT are mainly used for oil casing. API 5CT oil casing can be divided into seamless steel pipe and welded steel pipe.
API 5CT Steel Pipe Description
API 5CT is a standard technical specification of steel pipes for casing and tubing in oil or gas industries. It can be used in oil or gas drilling and conveying. Commonly used oilfield API-5CT casing steel grades are J55, K55, N80-1, N80Q, P110. Casings are mostly used in oil well drilling. According to the API-5CT standard, pipes can be divided into STC (short thread), LTC (long thread) and BTC (support thread) and their joints.
Product Parameters
Product Name | API 5CT Steel Pipe | |
Standard | EN/DIN/JIS/ASTM/BS/ASME/AISI etc. | |
Outer Diameter | Seamless: 1/4"-36" | Welding: 21.3mm-3620mm |
Round Tube: 1/2"-10" | Square Tube/Rectangular Tube: 15x15mm-400x600mm | |
Wall Thickness | Seamless: 1.25mm-50mm | Welding: 1.65mm-65mm |
Length | 3-12 meters, Support customization | |
Surface Process | Bright, Polished, Black | |
Other Services | Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc. | |
Chemical Composition
Grade | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Cr ≤ | Ni ≤ | With | V ≤ | Als ≤ |
API 5CT J55 | 0.34-0.39 | 0.20-0.35 | 1.25-1.50 | 0.020 | 0.015 | 0.15 | 0.20 | 0.20 | / | 0.020 |
API 5CT K55 | 0.34-0.39 | 0.20-0.35 | 1.25-1.50 | 0.020 | 0.015 | 0.15 | 0.20 | 0.20 | / | 0.020 |
API 5CT N80 | 0.34-0.38 | 0.20-0.35 | 1.45-1.70 | 0.020 | 0.015 | 0.15 | / | / | 0.11-0.16 | 0.020 |
API 5CT L80 | 0.15-0.22 | 1.00 | 0.25-1.00 | 0.020 | 0.010 | 12.0-14.0 | 0.20 | 0.20 | / | 0.020 |
API 5CT J P110 | 0.26-035 | 0.17-0.37 | 0.40-0.70 | 0.020 | 0.010 | 0.80-1.10 | 0.20 | 0.20 | 0.08 | 0.020 |
Mechanical Properties
Grade | Yield Strength (Mpa) | Tensile Strength (Mpa) |
API 5CT J55 | 379-552 | ≥ 517 |
API 5CT K55 | ≥ 655 | ≥ 517 |
API 5CT N80 | 552-758 | ≥ 689 |
API 5CT L80 | 552-655 | ≥ 655 |
API 5CT P110 | 758-965 | ≥ 862 |
Scope of Application
API 5CT oil casing is mainly used to transport oil, natural gas, coal gas, water and other liquids, gases.

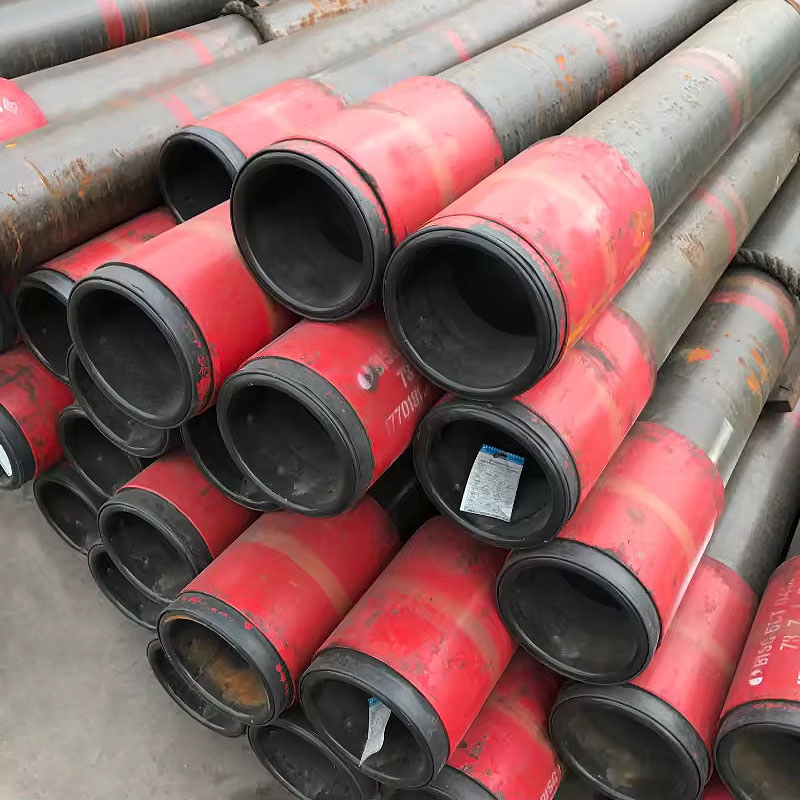

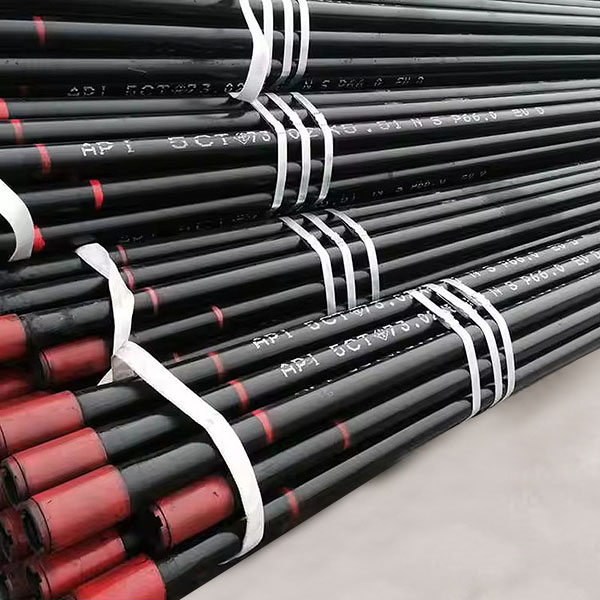

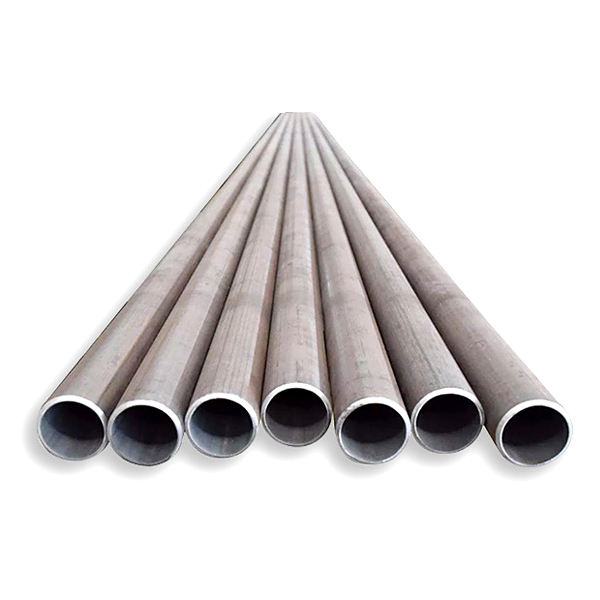

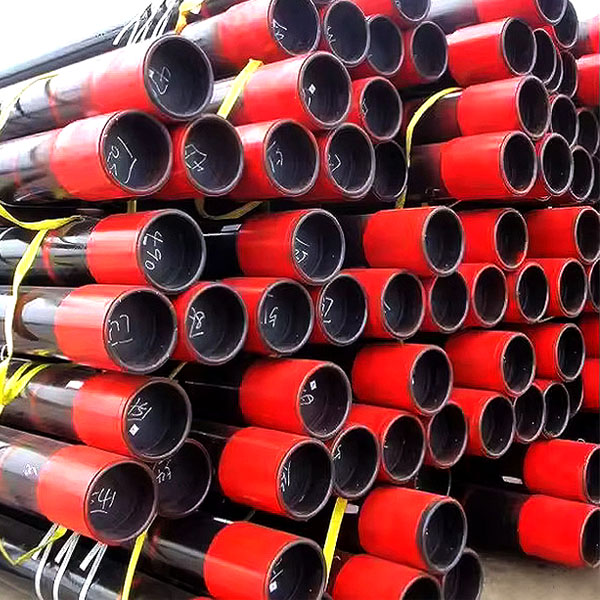

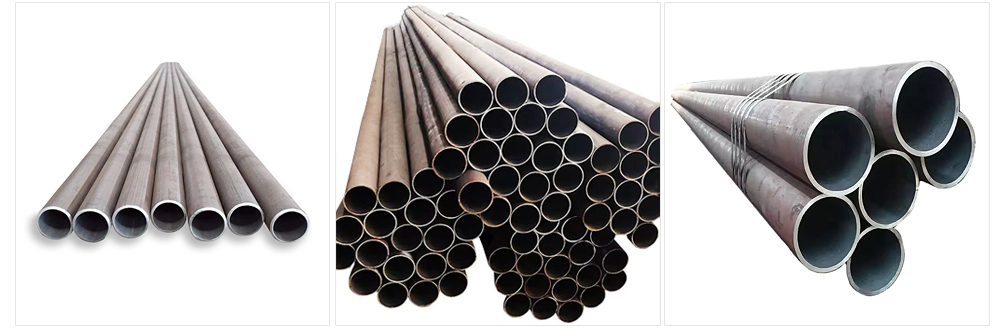

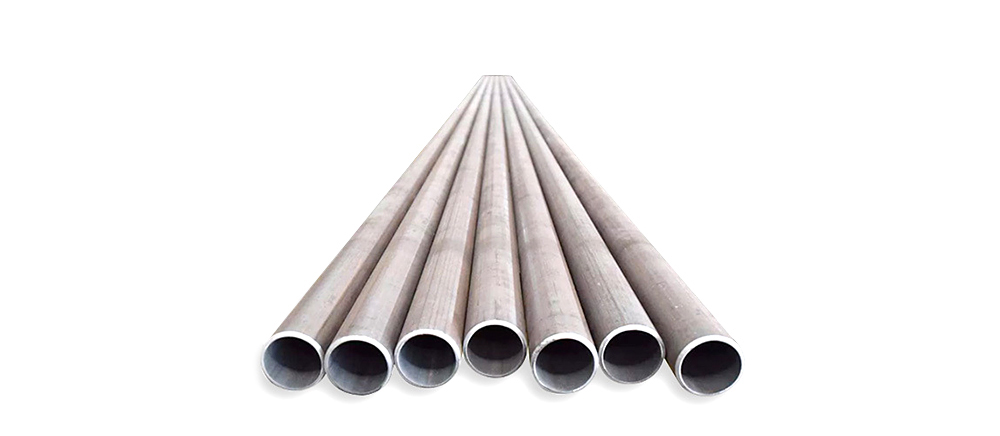

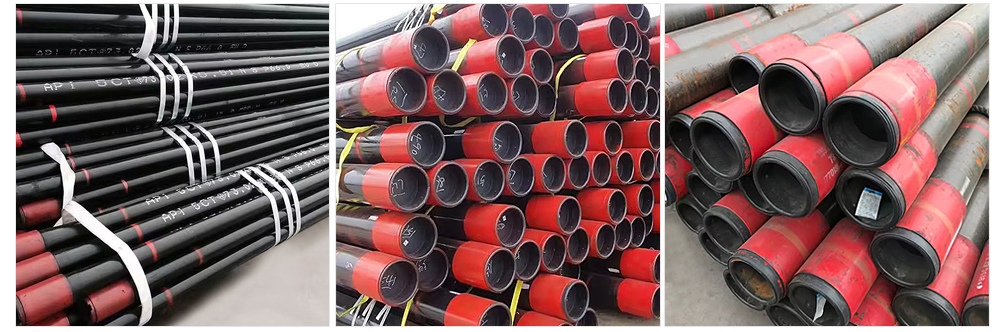

Product Show
