EN10025-2 S235/S275/S355 Carbon Steel Coil
- China
- 15-25 Working Days
- Factory Direct Supply
EN10025-2 steel coil is a low-alloy high-strength structural steel, which is made of carbon structural steel by adding a small amount of alloying elements.
E-mail：
admin@jinshugc.com
WhatsApp：
8615315750155
EN10025-2 S235/S275/S355 Carbon Steel Coil
EN10025-2 steel coil is a low-alloy high-strength structural steel, which is made of carbon structural steel by adding a small amount of alloying elements.
EN10025-2 S235/S275/S355 Carbon Steel Coil Description
EN10025-2 steel coil has good welding performance, plasticity, toughness and processing technology, good corrosion resistance, high strength and low cold brittle critical transition temperature. The use of high-strength low-alloy steel coil manages to reduce the weight of the structure, improve the strength and stiffness of the structure, and improve durability while reducing the thickness of the structure. EN10025-2 steel coils are commonly used in construction equipment, crane booms, automobile frames and general manufacturing. They are particularly ideal to choose in low temperature environments.
Product Parameters
Product Name | EN10025-2 S235/S275/S355 Carbon Steel Coil |
Production Process | Hot Rolling, Cold Rolling |
Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
Width | 45mm-2200mm |
Length | Custom Size |
Thickness | Hot Rolling: 2.75mm-100mm |
Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
Brand | C | Si max | Mn max | P max | S max | N max | Cu max | ||
≤ 16 | 16-40 | > 40 | |||||||
S235JR | 0.17 | 0.17 | 0.20 | - | 1.40 | 0.035 | 0.035 | 0.012 | 0.55 |
S275JR | 0.21 | 0.21 | 0.22 | - | 1.50 | 0.035 | 0.035 | 0.012 | 0.55 |
S275J0 | 0.18 | 0.18 | 0.18 | - | 1.50 | 0.030 | 0.030 | 0.012 | 0.55 |
S275J2 | 0.18 | 0.18 | 0.18 | - | 1.50 | 0.025 | 0.025 | - | 0.55 |
S355JR | 0.24 | 0.24 | 0.24 | 0.55 | 1.60 | 0.035 | 0.035 | 0.012 | 0.55 |
S355J0 | 0.20 | 0.20 | 0.22 | 0.55 | 1.60 | 0.030 | 0.030 | 0.012 | 0.55 |
S355J2 | 0.20 | 0.20 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 | - | 0.55 |
Mechanical Properties
Thickness mm | Tensile Strength | ||||
≤ 3 | 3-100 | 100-150 | 150-250 | 250-400 | |
S235JR | 360-510 | 360-510 | 350-500 | 340-490 | - |
S275JR | 430-580 | 410-560 | 400-540 | 380-540 | - |
S275J0 | 430-580 | 410-560 | 400-540 | 380-540 | - |
S275J2 | 430-580 | 410-560 | 400-540 | 380-540 | - |
S355JR | 510-680 | 470-630 | 450-600 | 450-600 | - |
S355J0 | 510-680 | 470-630 | 450-600 | 450-600 | - |
S355J2 | 510-680 | 470-630 | 450-600 | 450-600 | 450-600 |
| Thickness mm | Yield Strength | ||||||||
≤ 16 | 16-40 | 40-63 | 63-80 | 80-100 | 100-150 | 150-200 | 200-250 | 250-400 | |
S235JR | 235 | 225 | 215 | 215 | 215 | 195 | 185 | 175 | - |
S275JR | 275 | 265 | 255 | 245 | 235 | 225 | 215 | 205 | - |
S275J0 | 275 | 265 | 255 | 245 | 235 | 225 | 215 | 205 | - |
S275J2 | 275 | 265 | 255 | 245 | 235 | 225 | 215 | 205 | 195 |
S355JR | 355 | 345 | 335 | 325 | 315 | 295 | 285 | 275 | - |
S355J0 | 355 | 345 | 335 | 325 | 315 | 295 | 285 | 275 |
|
S355J2 | 355 | 345 | 335 | 325 | 315 | 295 | 285 | 275 | 265 |
Equivalent Material
European Standard | American Standard |
S235 | A283 C |
S275 | A570 Gr40 |
S355 | A572 Gr50 |
Scope of Application
EN10025-2 steel plate structures are used in trucks, transmission towers, dump trucks, cranes, trailers, bulldozers, excavators, forestry machinery, etc.

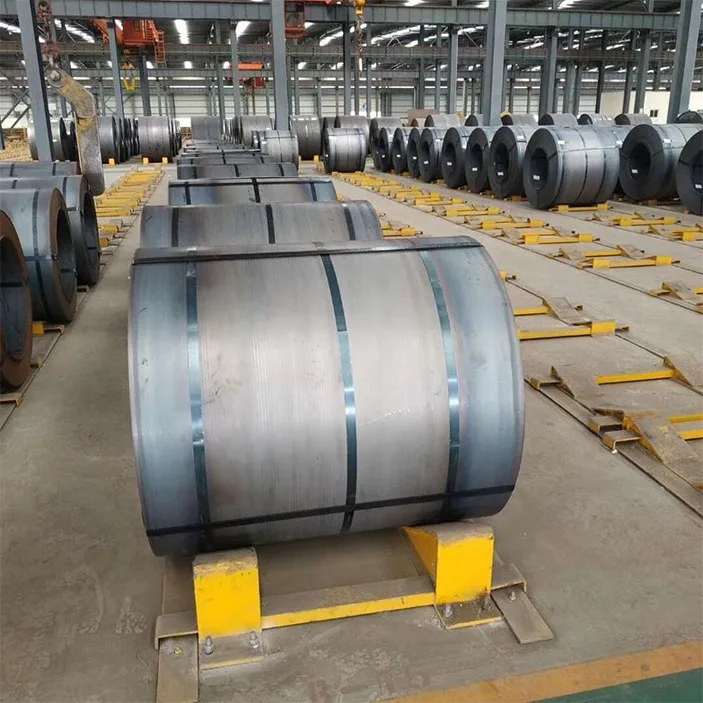

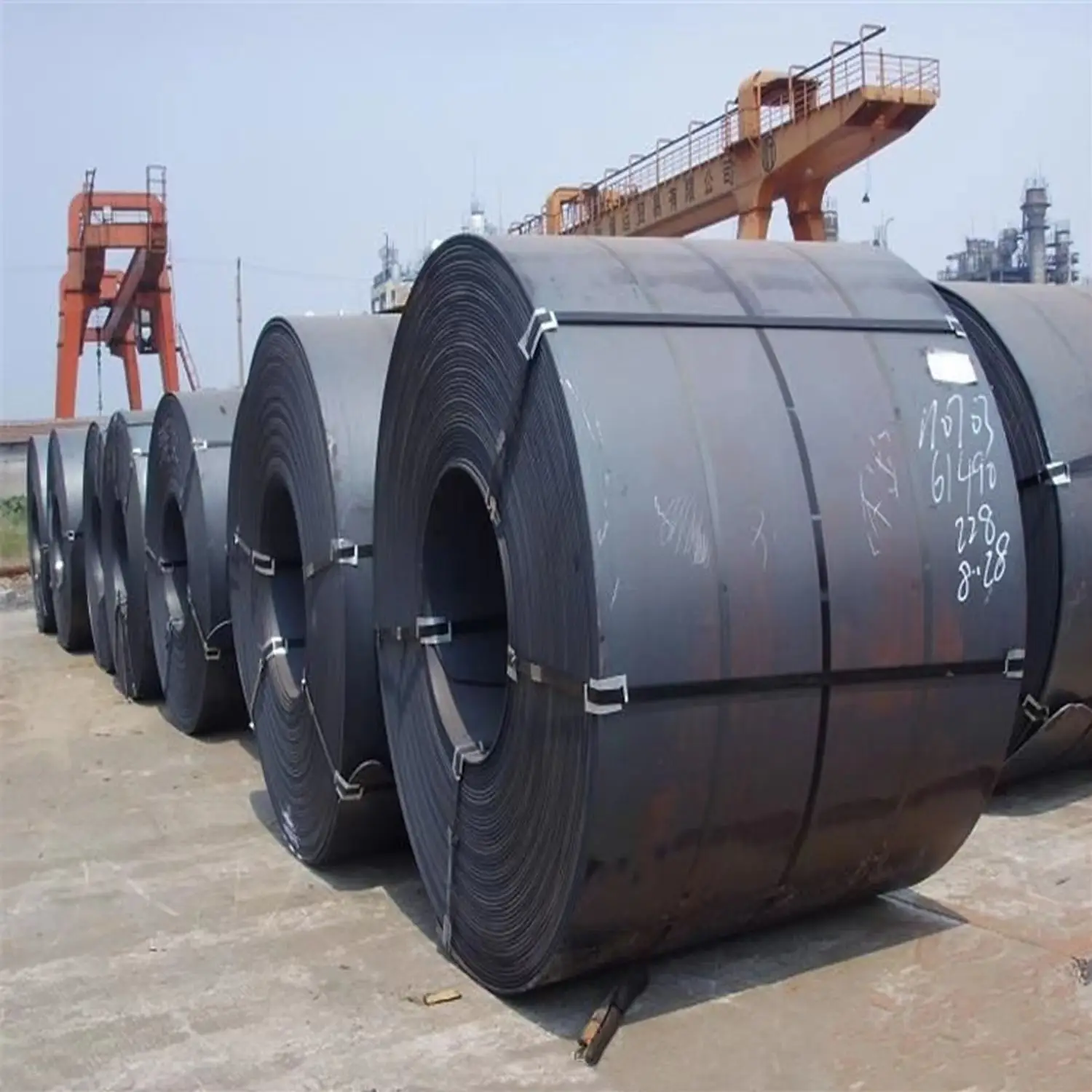

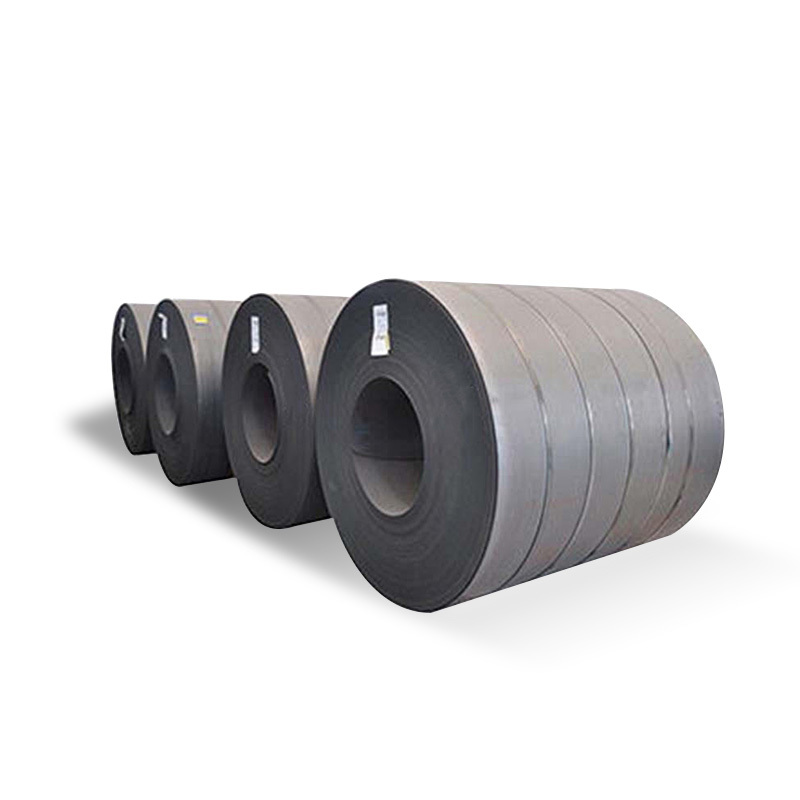

Product Show
