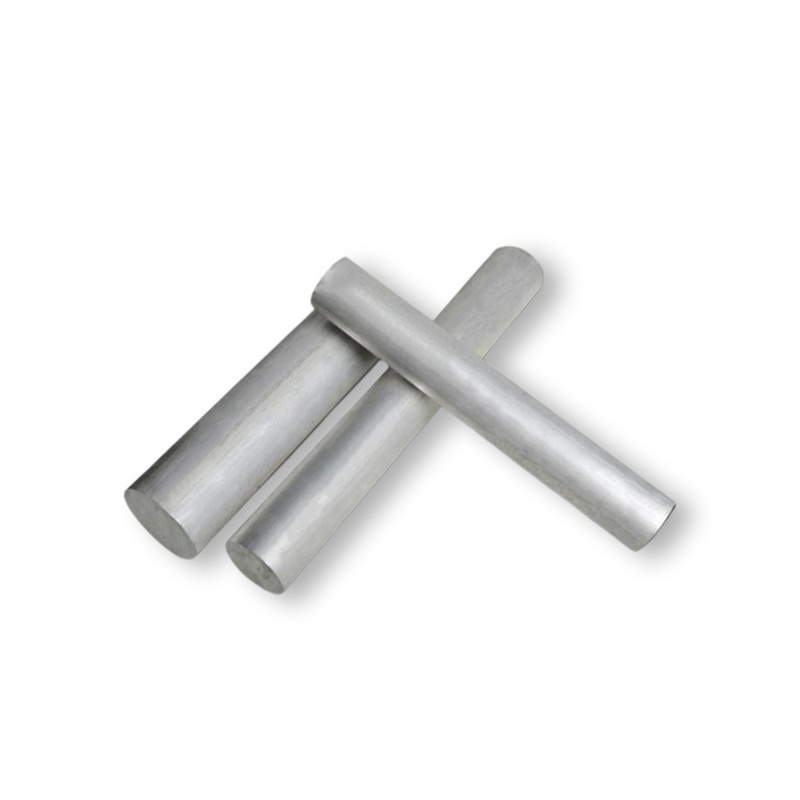

Hastelloy C-22 Bar

Hastelloy C22 bar is made of a solid solution strengthened nickel-based alloy with excellent corrosion resistance and high temperature strength. It mainly contains cobalt, chromium, tungsten, molybdenum and a small amount of aluminum, titanium, nitrogen and other elements.

E-mail：admin@jinshugc.com

WhatsApp：8615315750155

Hastelloy C-22 Bar Description

The main elements of Hastelloy C22 bar include cobalt, chromium, tungsten, molybdenum and small amounts of aluminum, titanium and nitrogen. Among them, cobalt element can improve the strength and hardness of the alloy, chromium element has an important impact on the corrosion resistance of the alloy, tungsten and molybdenum can improve the high-temperature strength of the alloy. In addition, aluminum and titanium elements can help refine the grains and improve the toughness of the alloy, while the addition of nitrogen can improve the strength and corrosion resistance of the alloy. What is more, it has good plasticity and toughness and can be used for cold and hot processing. Hastelloy C22 bar also exhibits excellent oxidation resistance and creep resistance at high temperatures, making it a popular choice in aerospace, chemical industry, petroleum fields.

Product Parameters

Product Name		Hastelloy C-22 Bar
Outer Diameter	Round Bar	4mm-500mm
	Hexagon Bar	18mm-57mm (11/16″ to 2-3/4″)
	Square Bar	18mm-47mm (11/16″ to 1-3/4″)
	Flat Steel	1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc.
Certificate		ISO, SGS, BV
Production Technology		Hot Rolling, Cold Rolling

Chemical Composition

C	Si	P	S	V	Cr	Mn	Fe	Co	Ni	Mo	W
0.015 max	0.08 max	0.02 max	0.02 max	0.35 max	20.0 - 22.5	0.50 max	2.0-6.0	2.5 max	Remainder	12.5 - 14.5	2.5 - 3.5

Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
100	45	45

Physical Performance

	Units	Temperature in°C
Density	8.69 g/cm³	24°C
Specific Heat	0.093 Kcal/kg.C	52°
Melting Range	1357-1399°C	-
Modulus of Elasticity	205.5 KN/mm²	-
Electrical Resistivity	113.7 µΩ.cm	24 °
Coefficient of Expansion	12.4 µm/m °C	24-93°
Thermal Conductivity	10.1 w/m-° K	48°

Scope of Application

C- 276 alloy is used in pesticide production, phosphoric acid production, pickling system, plate heat exchanger, selective leaching system, SO2 cooling tower, sulfonation system, shell and tube heat exchanger, surfacing welding valve, etc.
