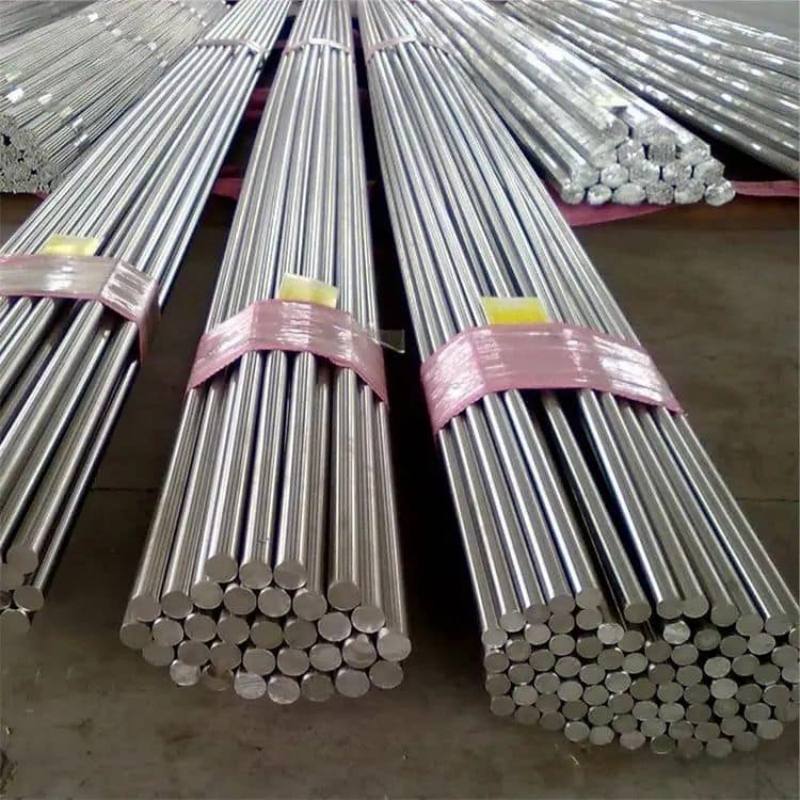

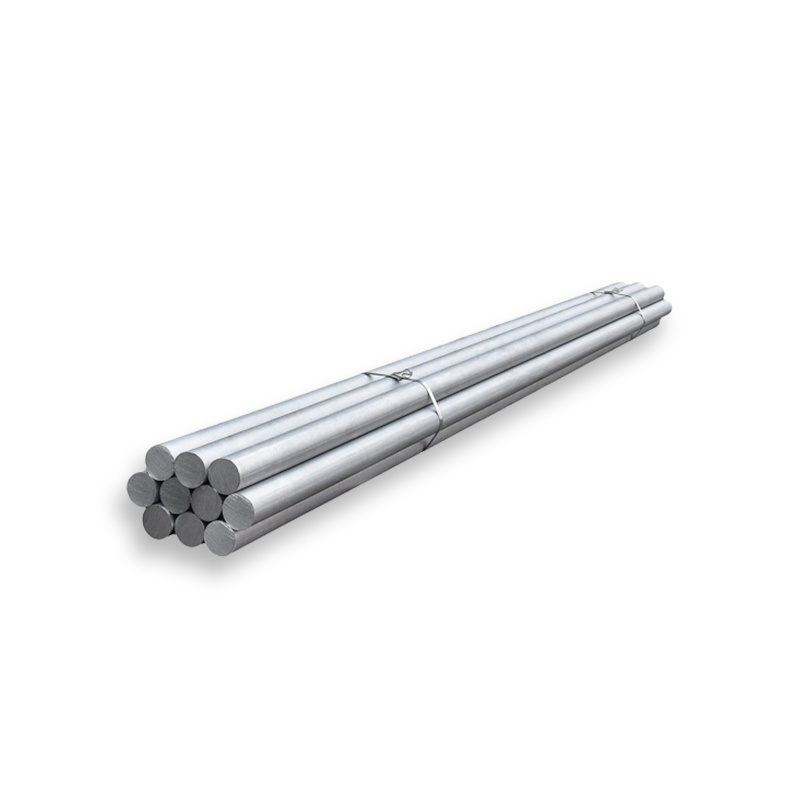

Inconel 625 Bar
Inconel 625 bar is made of a nickel-based high-temperature alloy composed of nickel, chromium, molybdenum, niobium and other elements. It has outstanding high temperature resistance, strength and good oxidation resistance, and is widely used in aerospace, energy, chemical industry and other fields.
E-mail：admin@jinshugc.com
WhatsApp：8615315750155
Inconel 625 Bar Description
The strength of Inconel 625 bar derives from the solid solution strengthening effect of molybdenum and niobium contained in the nickel-chromium alloy. These elements also make the alloy highly resistant to corrosion. While the alloy is designed for strength in high-temperature environments, it also has a high degree of resistance to general corrosion as well as resistance to a wide range of oxidizing and non-oxidizing environments. The chromium and molybdenum content make the alloy highly resistant to corrosion spots caused by chloride ions, and the high nickel content enhances the alloy's resistance to chloride stress corrosion cracking. The material is highly formable and easier to weld than many nickel-based alloys. Even under welded conditions, the alloy still has the ability to resist intergranular corrosion, in addition to corrosion and oxidation resistance.
Product Parameters
Product Name | Inconel 625 Bar | |
Outer Diameter | Round Bar | 4mm-500mm |
Hexagon Bar | 18mm-57mm (11/16″ to 2-3/4″) | |
Square Bar | 18mm-47mm (11/16″ to 1-3/4″) | |
Flat Steel | 1/2 "to 10", Thickness: 2mm-150mm, Can provide customized | |
Length | 1-6 meters, Length can be customized | |
Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. | |
Surface | Black, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc. | |
Certificate | ISO, SGS, BV | |
Production Technology | Hot Rolling, Cold Rolling | |
Chemical Composition
C | Mg | Al | Si | P | S | Ti | Cr | Fe | Co | Ni | Mo | Cb (Nb Ta) |
0.1 max | 0.5 max | 0.4 max | 0.5 max | 0.015 max | 0.015 max | 0.4 max | 20.00 - 23.00 | 5.0 max | 1.0 max | 58.0 min | 8.0 - 10.0 | 3.15 - 4.15 |
Mechanical Properties
Tensile Strength (ksi) | 0.2% Yield Strength (ksi) | Elongation% in 2 inches |
120 | 60 | 30 |
Physical Performance
| Units | Temperature in°C |
Density | 8.44 g/cm³ | Room |
Specific Heat | 0.098 Kcal/kg.C | 21° |
Melting Range | 1290-1350°C | - |
Modulus of Elasticity | 207.5 KN/mm² | 21° |
Electrical Resistivity | 129 µΩ.cm | 21° |
Coefficient of Expansion | 12.8 µm/m °C | 21 - 93° |
Thermal Conductivity | 9.8 w/m-° K | 21° |
Scope of Application
This alloy is resistant to a variety of severe corrosive environments, especially to pitting and crevice corrosion. Some applications of Inconel 625 are used as part of chemical processing, aerospace, and marine engineering, pollution control equipment, and nuclear reactors.

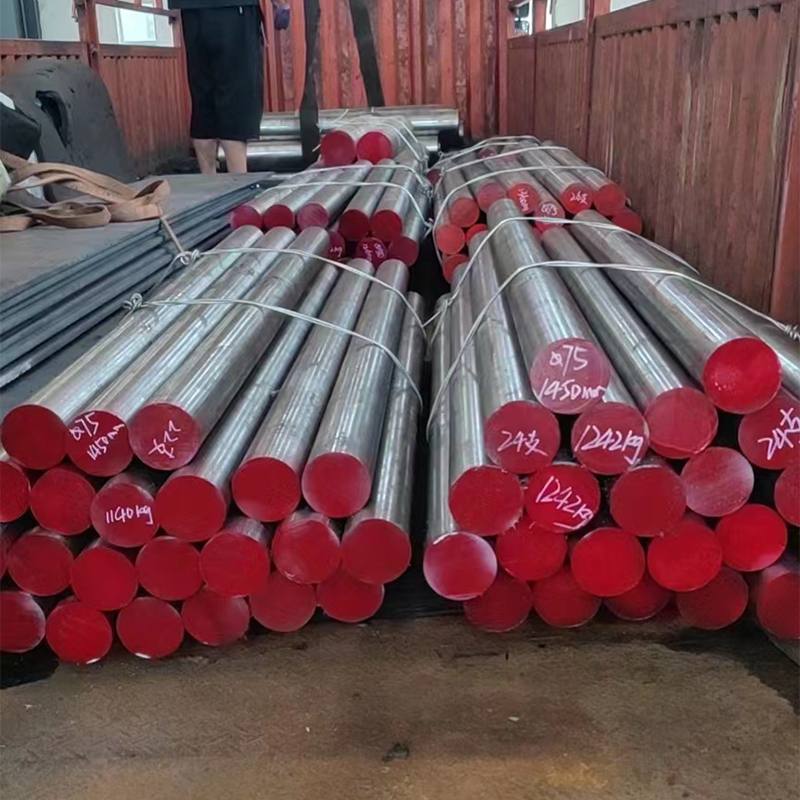

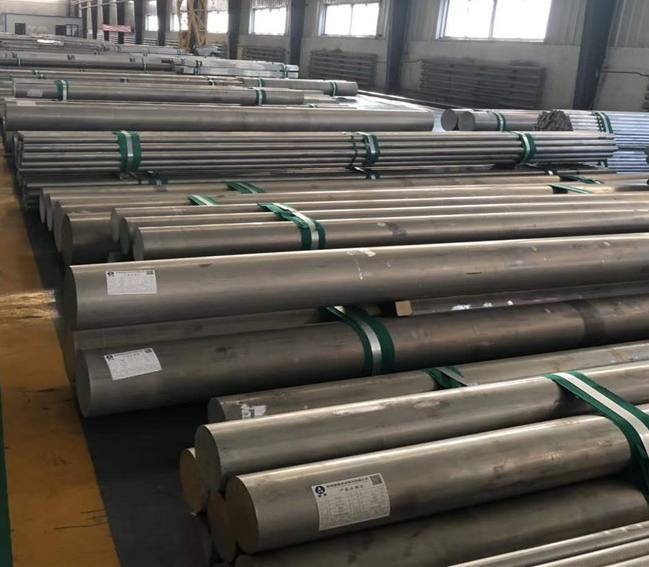

Alloy steel inventory

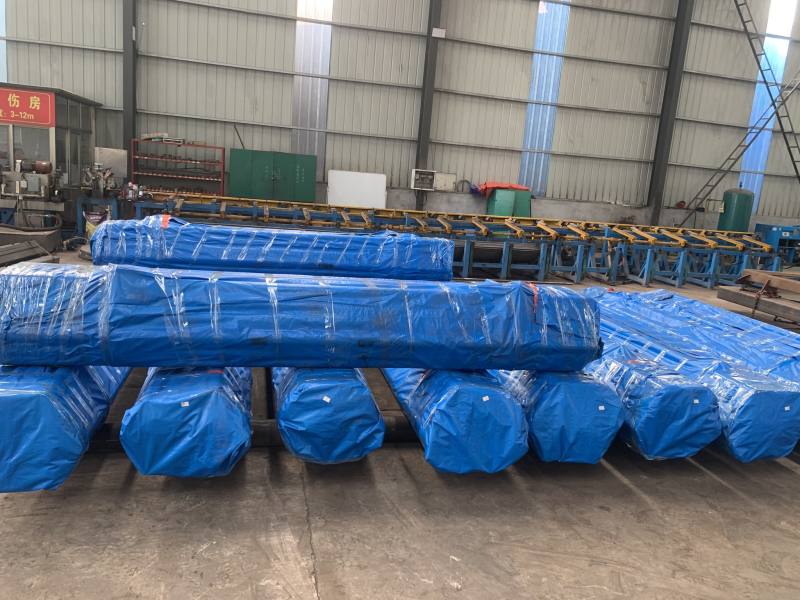

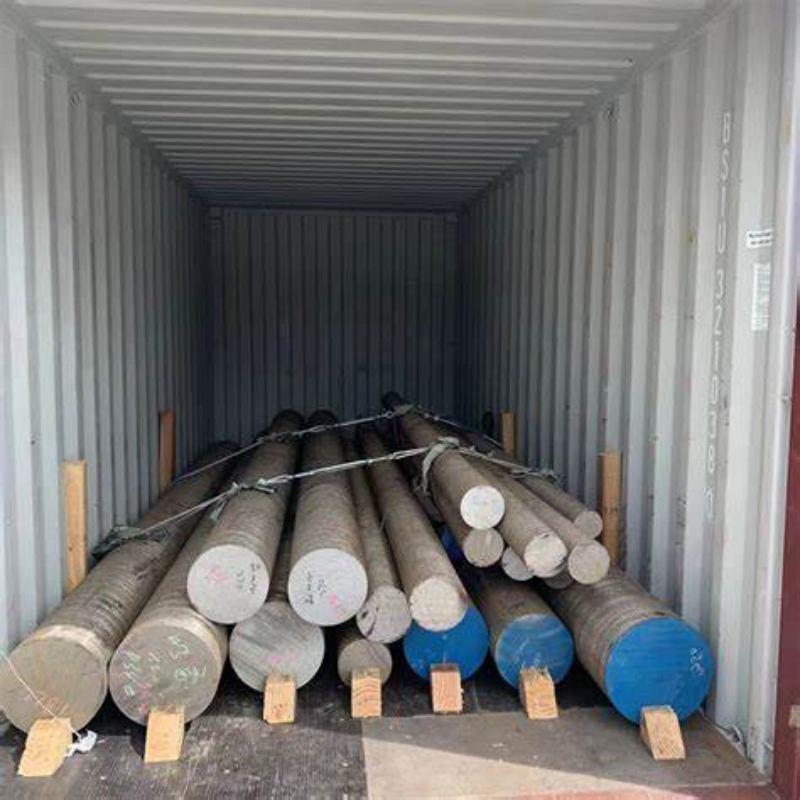

Alloy steel shipment
