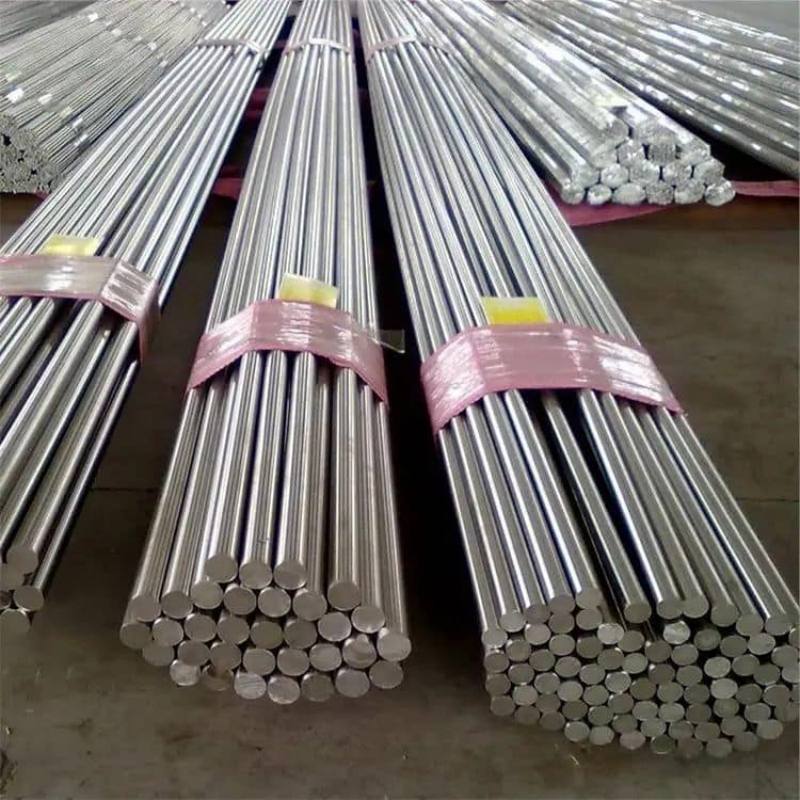

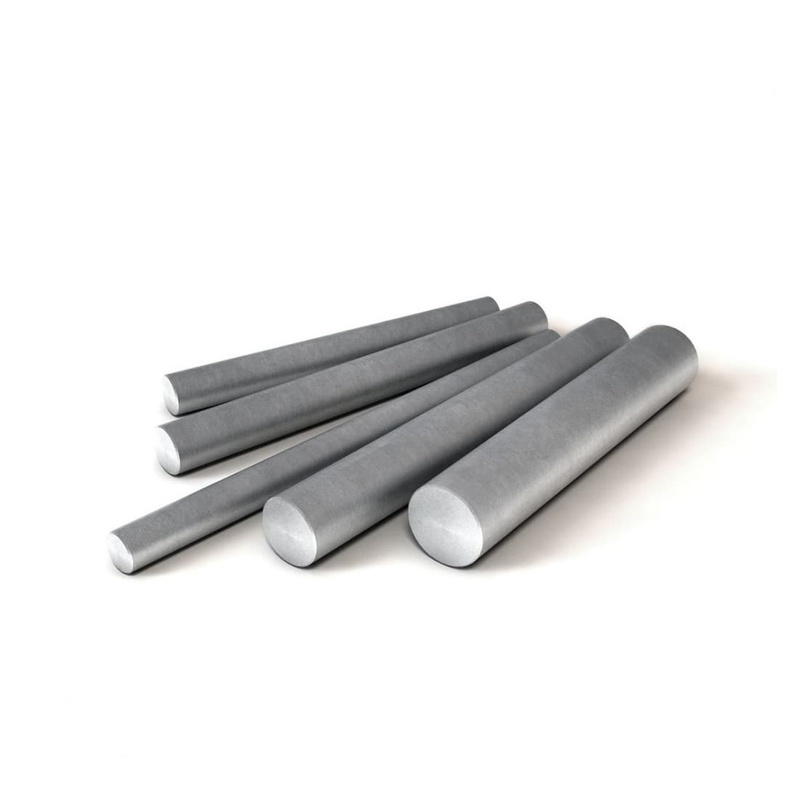

Inconel 718 Bar

Inconel 718 bar is made of a special type of high-strength superalloy whose nickel-chromium base makes it resistant to corrosion, high pressures and temperatures up to 700°C. Due to its unique properties, Inconel 718 bar is used in a wide range of applications from manufacturing operations to military equipment and the aerospace industry.

E-mail： admin@jinshugc.com

WhatsApp： 8615315750155

Inconel 718 Bar Description

Inconel 718 is a high-strength, high-temperature, corrosion-resistant nickel-based alloy whose chemical composition covers nickel, chromium, molybdenum, iron, cobalt, aluminum, titanium, zirconium, carbon, and manganese. Inconel 718 has a melting point of 1430°C and displays effective heat and temperature resistance. This nickel superalloy can create a strong and stable oxide layer when heated. In addition, the layer makes this Inconel variant significantly resistant to oxidation, thus protecting it from corrosion. Inconel 718 bar can be manufactured through a variety of processing methods, such as forging, hot rolling, cold drawing and welding. It is prone to oxidation and hardening at high temperatures, and appropriate preheating and post-processing measures are needed to prevent the phenomenon.

Product Parameters

Product Name		Inconel 718 Bar
Outer Diameter	Round Bar	4mm-500mm
	Hexagon Bar	18mm-57mm (11/16″ to 2-3/4″)
	Square Bar	18mm-47mm (11/16″ to 1-3/4″)
	Flat Steel	1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc.
Certificate		ISO, SGS, BV
Production Technology		Hot Rolling, Cold Rolling

Chemical Composition

Cb (Nb Ta)

0.006 max

0.08 max

0.20-0.80

0.35 max

0.015 max

0.65-1.15

17.00-21.00

0.35 max

Remainder

1.0 max

50.00 - 55.00

0.30 max

2.80 - 3.30

4.75 - 5.50

Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
180	150	12

Physical Performance

	Units	Temperature in°C
Density	8.19 g/cm³	Room
Specific Heat	0.104 Kcal/kg.C	21°
Melting Range	1260-1366°C	-
Modulus of Elasticity	199.9 KN/mm²	21°
Electrical Resistivity	125 µΩ.cm	Room
Coefficient of Expansion	13.0 µm/m °C	20 - 100°
Thermal Conductivity	11.1 w/m-° K	21°

Scope of Application

This nickel steel alloy can be manufactured rapidly and can be welded in an annealed or precipitation (age) hardened condition. This superalloy is used as part of various commercial enterprises, such as aerospace, marine engineering, chemical processing, pollution control equipment and nuclear reactors.
