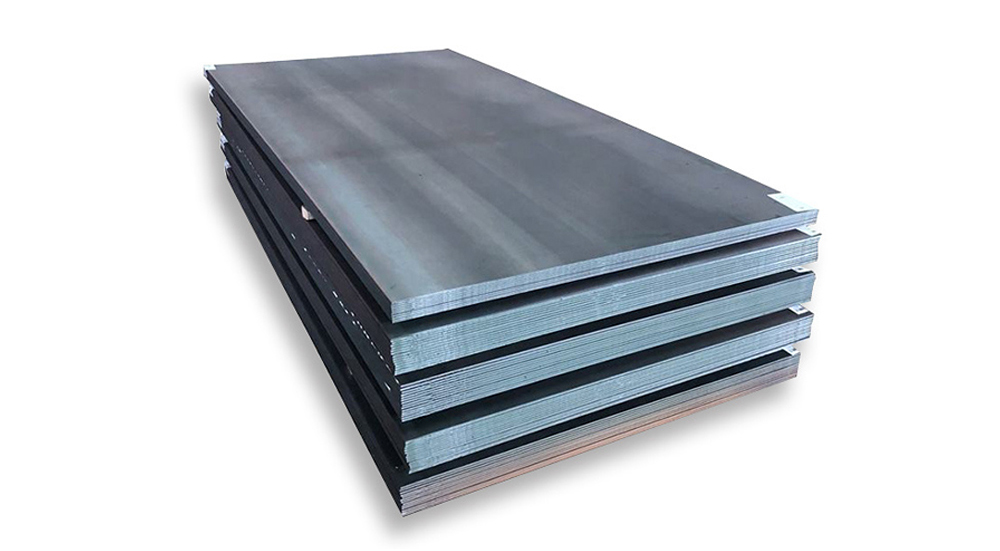

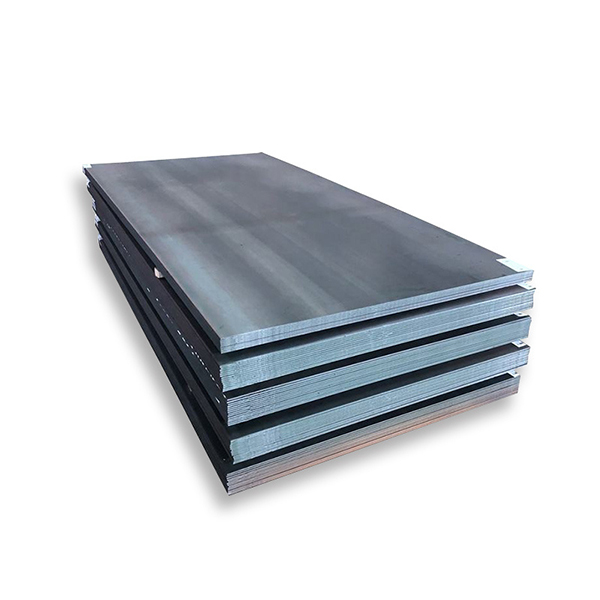

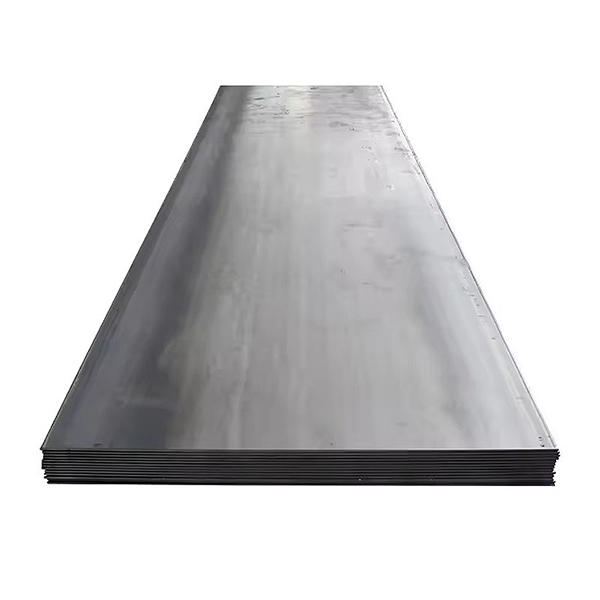

JIS G3101 SS400/SS490/SS540 Cold Rolled Steel Plate
- China
- 15-25 Working Days
- Factory Direct Supply
JIS G3101 SS400 is a common carbon structural steel grade. Other grades of JIS G3101 are ss330, ss490 and ss540. Related product types include steel plate, steel plate, steel section, steel pipe, etc.
E-mail：
admin@jinshugc.com
WhatsApp：
8615315750155
JIS G3101 SS400/SS490/SS540 Cold Rolled Steel Plate
JIS G3101 SS400 is a common carbon structural steel grade. Other grades of JIS G3101 are ss330, ss490 and ss540. Related product types include steel plate, steel plate, steel section, steel pipe, etc.
JIS G3101 SS400/SS490/SS540 Cold Rolled Steel Plate
SS400 is a marking method for Japanese steel materials and a judgment standard, which is equivalent to Q235 steel. Ordinary structural steel in Japanese steel (JIS series) grades mainly consists of three parts: SS400-S means steel, the second S means "structure", 400 is the lower limit tensile strength of 400MPa. SS400 steel plate itself not only has high strength, but also has certain comprehensive high-quality properties such as toughness, fatigue resistance, impact resistance, corrosion resistance, low temperature impact resistance, welding and easy processing. SS400 steel plates are widely used in construction and engineering structures.
Product Parameters
Product Name | JIS G3101 SS400/SS490/SS540 Cold Rolled Steel Plate |
Production Process | Hot Rolling, Cold Rolling |
Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
Width | 100mm-3000mm |
Length | 1m-12m, or Customized Size |
Thickness | 0.1mm-400mm |
Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
Brand | Carbon | Manganese | Phosphorus | Sulphur |
SS400 | - | - | 0.050 max | 0.050 max |
SS490 | - | - | 0.050 max | 0.050 max |
SS540 | 0.30 max | 1.60 max | 0.040 max | 0.040 max |
Mechanical Properties
Brand | Yield Strength | Tensile Strength | |||
| ≤ 16 | 16-40 | 40-100 | > 100 | - |
SS400 | 245 | 235 | 215 | 205 | 400-510 |
SS490 | 285 | 275 | 255 | 245 | 490-610 |
SS540 | 400 | 390 | - | - | 540 |
Scope of Application
JIS G3101 scope of application: JIS G3101 steel plate and other steel grade products are suitable for general structural buildings, such as bridges and ships.
Cooperative Client

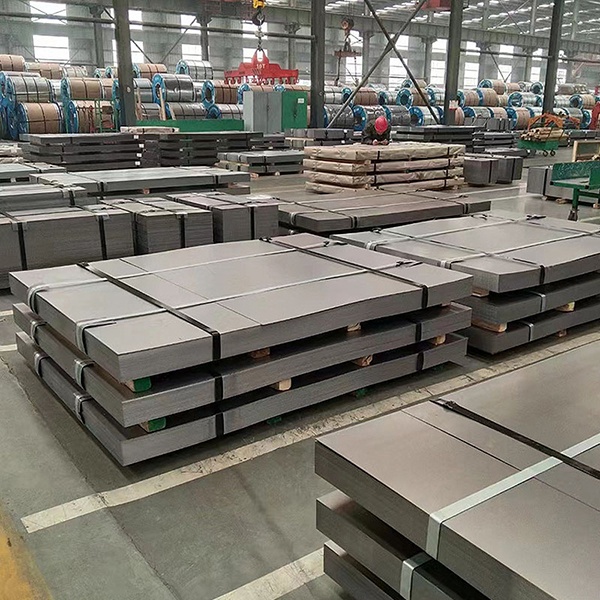

Packing And Shipping
