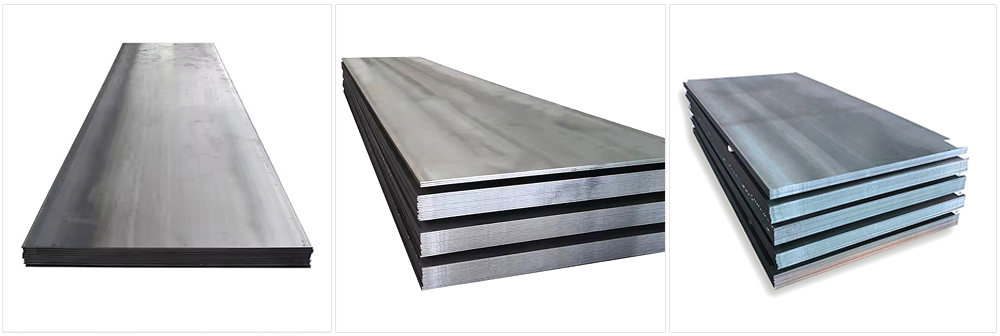

Q235 DC01 S275 Cold Rolled Carbon Steel Plate
- China
- 15-25 Working Days
- Factory Direct Supply
Cold-rolled sheet is a product made of hot-rolled coil rolled at room temperature and below the recrystallization temperature. Mostly used in automobile manufacturing, electrical products and so on. Cold rolling is rolling at recrystallization temperatures, but is generally understood as rolling using normal temperature rolled materials.
E-mail：
admin@jinshugc.com
WhatsApp：
8615315750155
Q235 DC01 S275 Cold Rolled Carbon Steel Plate
Cold-rolled sheet is a product made of hot-rolled coil rolled at room temperature and below the recrystallization temperature. Mostly used in automobile manufacturing, electrical products and so on. Cold rolling is rolling at recrystallization temperatures, but is generally understood as rolling using normal temperature rolled materials.
Cold Rolled Carbon Steel Plate
SS400 is a marking method for Japanese steel materials and a judgment standard, which is equivalent to Q235 steel. Ordinary structural steel in Japanese steel (JIS series) grades mainly consists of three parts: SS400-S means steel, the second S means "structure", 400 is the lower limit tensile strength of 400MPa. SS400 steel plate itself not only has high strength, but also has certain comprehensive high-quality properties such as toughness, fatigue resistance, impact resistance, corrosion resistance, low temperature impact resistance, welding and easy processing. SS400 steel plates are widely used in construction and engineering structures.
Product Parameters
Product Name | Q235 DC01 S275 Cold Rolled Carbon Steel Plate |
Production Process | Hot Rolling, Cold Rolling |
Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
Width | 100mm-3000mm |
Length | 1m-12m, or Customized Size |
Thickness | 0.1mm-400mm |
Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
Brand | Carbon | Manganese | Phosphorus | Sulphur |
SS400 | - | - | 0.050 max | 0.050 max |
SS490 | - | - | 0.050 max | 0.050 max |
SS540 | 0.30 max | 1.60 max | 0.040 max | 0.040 max |
Mechanical Properties
Brand | Yield Strength | Tensile Strength | |||
| ≤ 16 | 16-40 | 40-100 | > 100 | - |
SS400 | 245 | 235 | 215 | 205 | 400-510 |
SS490 | 285 | 275 | 255 | 245 | 490-610 |
SS540 | 400 | 390 | - | - | 540 |
Scope of Application
JIS G3101 steel plate and other steel grade products are suitable for general structural buildings, such as bridges and ships.
