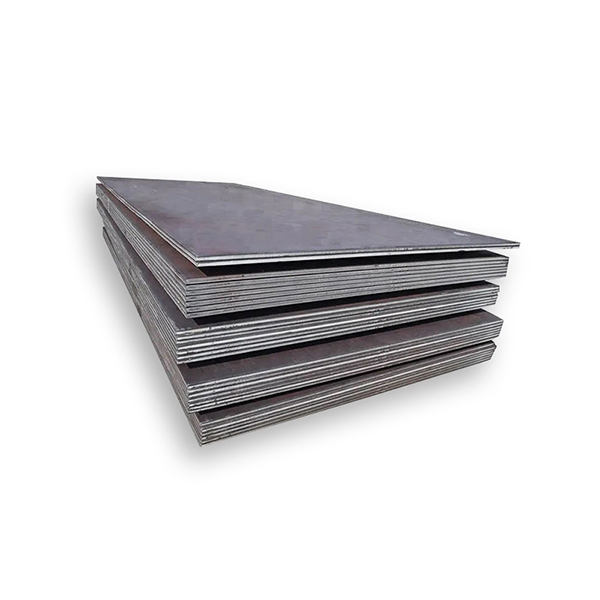

A203 Pressure Vessel Steel Plate

Product origin China
Delivery time 15-25 Working Days
Supply capacity Factory Direct Supply

A203 pressure vessel steel plate adopts nickel alloy steel material in the manufacture of high temperature pressure vessels. The performance of ASTM A203 boiler vessel plates is based on their Ni composition.

E-mail： admin@jinshugc.com

WhatsApp： 8615315750155

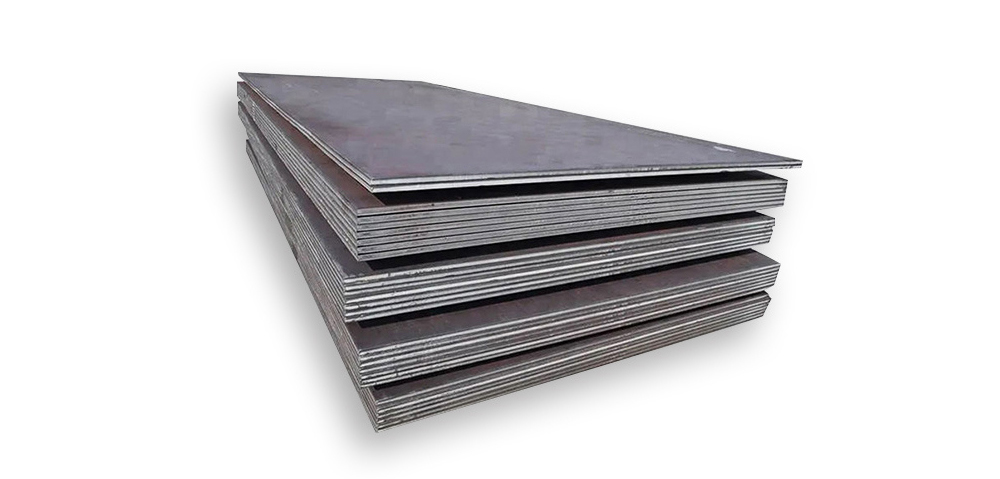

A203 Pressure Vessel Steel Plate

ASTM A203

A203 Pressure Vessel Steel Plate Description

ASTM A203 boiler container plates are available in five grades: Grade A, Grade B, Grade D, Grade E, and Grade F. ASTM A203 boiler container plates for grade A, B, D and E shall be normalized as required. The chemical composition shall conform to the requirements of ASTM A203/A203M. At the same time, ASTM A203 boiler container plate needs to do two mechanical properties test: namely tensile test and impact test. ASTM A203 boiler vessel plate is widely used in petroleum, chemical industry, power station, boiler and other industries, for the manufacture of reactor, heat exchanger, separator, spherical tank, oil and gas tank, high pressure pipeline, water turbine and other equipment and components.

Product Parameters

Product Name	A203 Pressure Vessel Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A203	Upper limit of Chemical Element Content (%)
A203	C	Si	Mn	P	S	Ni
Class A	0.23	0.13-0.45	0.88	0.025	0.025	2.03-2.57
Class B	0.25	0.13-0.45	0.88	0.025	0.025	2.03-2.57
Class D	0.20	0.13-0.45	0.88	0.025	0.025	3.18-3.82
Class E	0.23	0.13-0.45	0.88	0.025	0.025	3.18-3.82
Class F	0.23	0.13-0.45	0.88	0.025	0.025	3.18-3.82

Mechanical Properties

A202	Tensile Strengthkis [MPa]	Yield Strength kis [MPa]	Elongation Gauge length 8in. [200mm], %	Elongation Gauge length 2in. [50mm], %
Grade A	65-85 [450-585]	37 [255]	19	23
Grade B	70-90 [485-620]	40 [275]	17	21
Grade D	65-85 [450-585]	37 [255]	19	23
Grade E	70-90 [485-620]	40 [275]	17	21
Grade F	75-100 [515-690]	50 [345]	-	20

Physical Performance

Physical Performance	Metric	Imperial
Density	7.80 g/cc	0.282 lb/in³

Scope of Application

ASTM A203 boiler vessel plate is widely used in petroleum, chemical industry, power station, boiler and other industries, for the manufacture of reactor, heat exchanger, separator, spherical tank, oil and gas tank, high pressure pipeline, water turbine and other equipment and components.
