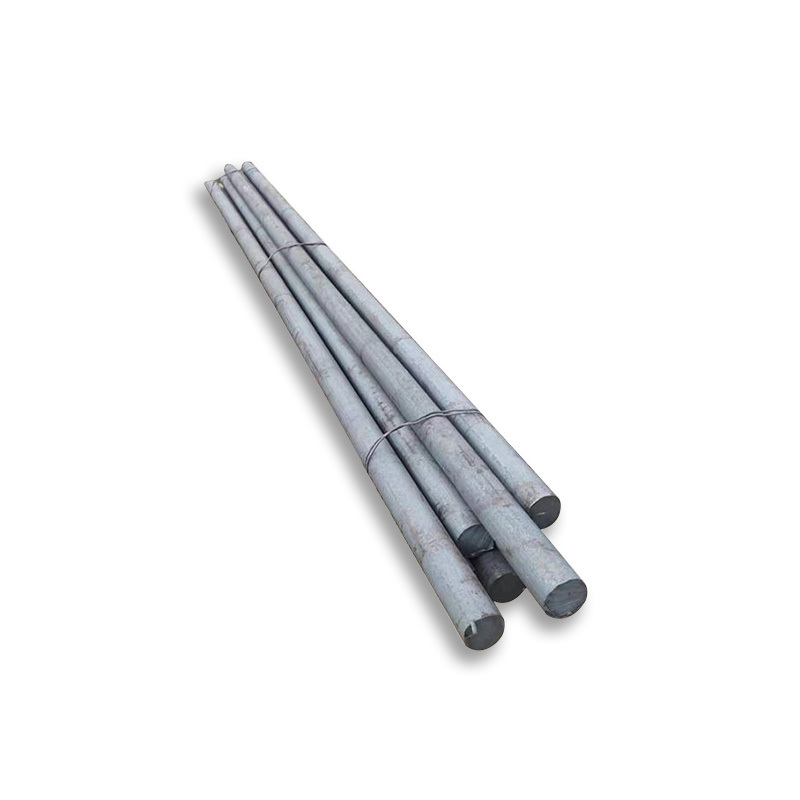

AISI/SAE 1018 Round Steel Bar

AISI 1018 carbon steel bar has a chemical composition of carbon, chromium, manganese, molybdenum, phosphorus, sulfur and silicon. AISI 1018 carbon steel is a free machining grade that is the most commonly available grade around the world.

E-mail： admin@jinshugc.com

WhatsApp： 8615315750155

AISI/SAE 1018 Round Steel Bar Description

1018 cold rolled steel bar is made of a general-purpose, low-carbon steel with good case hardening qualities. It is especially suited to cold forming and bending operations. 1018 steel is suitable for parts that require cold forming such as crimping, swaging, or bending. 1018 steel is mild steel with medium-low carbon content. AISI 1018 carbon steel is a free machining grade that is the most commonly available grade around the world. Although its mechanical properties are not very unique, it still can be easily formed, machined, welded and fabricated.

Product Parameters

Product Name	AISI/SAE 1018 Round Steel Bar
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI, etc.
Common Round Bar Specifications	3.0-50.8 mm, Over 50.8-300mm
Flat Steel Common Specifications	6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm
Hexagon Bar Common Specifications	AF5.8mm-17mm
Square Bar Common Specifications	AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm
Length	1-6meters, Size Accept Custom
Diameter(mm)	Hot Rolling Round Bar	25-600	Cold Rolling Square Bar	6-50.8
	Hot Rolling Square Bar	21-54	Cold Rolling Hexagon Bar	9.5-65
	Cold Rolling Round bar	6-101.6	Forged Rebar	200-1000
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.

Chemical Composition

Carbon Steel	C	Fe	Mn	P	S
1018	0.14-0.20 %	98.81-99.26 %	0.60-0.90 %	0.040 %	0.050 %

Mechanical Properties

Tensile Strength	Yield Strength	Elongation %	Hardness (Brinell)	Hardness (Rockwell B)
440 MPa	370 MPa	22	126	71

Scope of Application

Carburized parts, including worms, gears, pins, pins, tools and non-critical parts of mold sets; tool brackets, pinions, mechanical parts, ratchets, positioning pins and chain pins.

AISI/SAE 1018 Round Steel Bar
