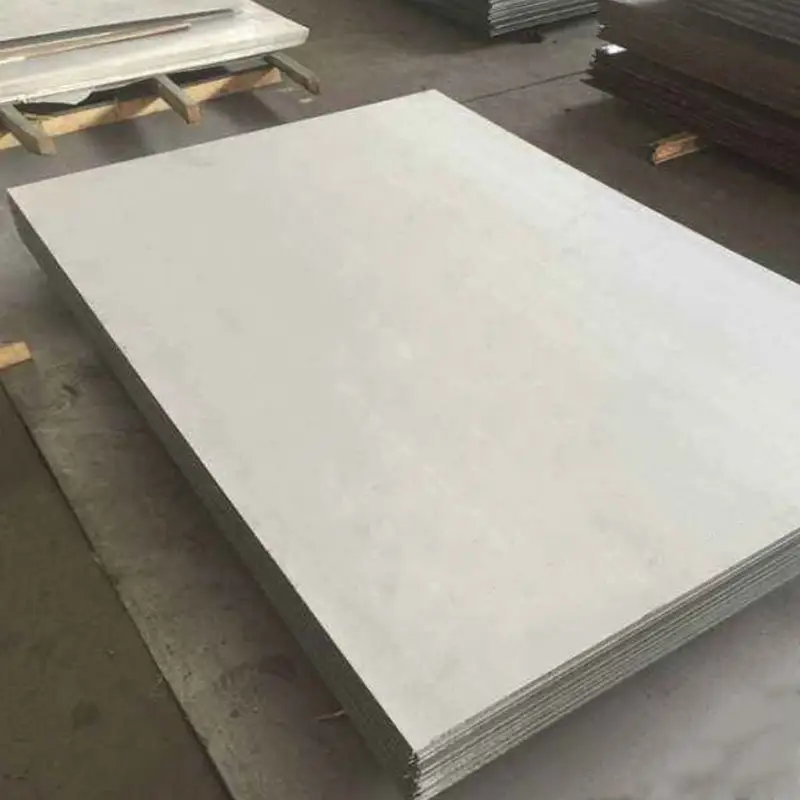

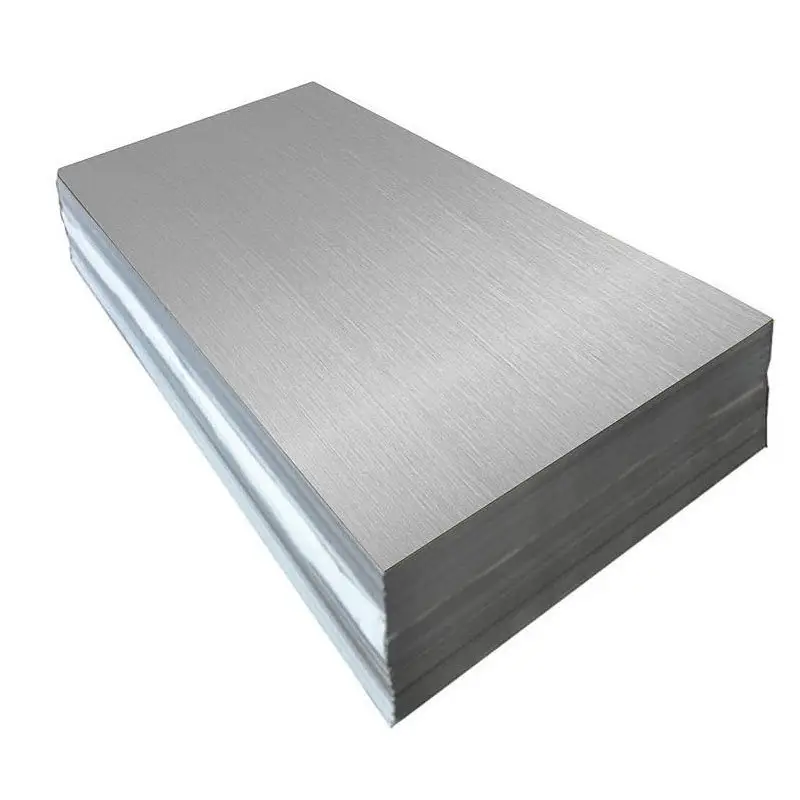

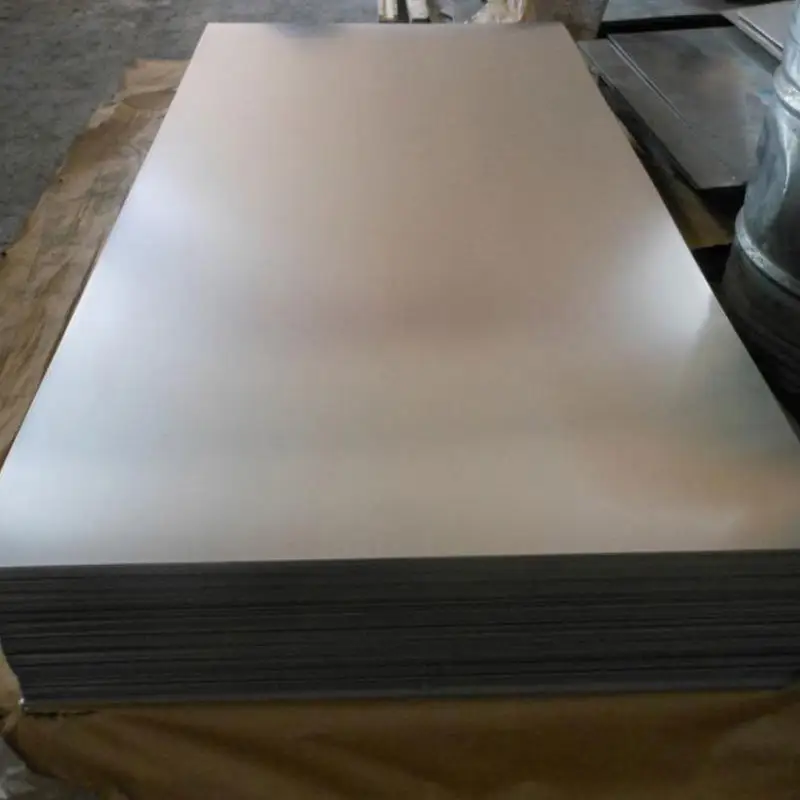

Hastelloy C-22 Plate

Product origin China
Delivery time 15-25 Working Days
Supply capacity Factory Direct Supply

Hastelloy C22 plate is made of a special alloy with excellent corrosion resistance and high temperature strength. It is a solid solution strengthened nickel-based alloy, mainly containing cobalt, chromium, tungsten, molybdenum and a small amount of aluminum, titanium, nitrogen and other elements.

E-mail： admin@jinshugc.com

WhatsApp： 8615315750155

Hastelloy C-22 Plate

Hastelloy C-22 PlateDescription

The main elements of Hastelloy C22 plate include cobalt, chromium, tungsten, molybdenum and small amounts of aluminum, titanium and nitrogen. Among them, cobalt element can improve the strength and hardness of the alloy, chromium element has an important impact on the corrosion resistance of the alloy, tungsten and molybdenum can improve the high-temperature strength of the alloy. In addition, the addition of aluminum and titanium elements can help refine the grains and improve the toughness of the alloy, while the addition of nitrogen can improve the strength and corrosion resistance of the alloy. Besides, it has good plasticity and toughness and can be used for cold and hot processing. Hastelloy C22 plate also exhibits excellent oxidation resistance and creep resistance at high temperatures. Hastelloy C22 plate is widely used in aerospace, chemical industry, petroleum and other fields because of its excellent corrosion resistance and high temperature strength.

Product Parameters

Product Name	Hastelloy C-22 Plate
Thickness	0.3mm-200mm
Length	2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Standard	ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Certificate	ISO, SGS, BV
Production Technology	Hot Rolling, Cold Rolling

Chemical Composition

C	Si	P	S	V	Cr	Mn	Fe	Co	Ni	Mo	W
0.015 max	0.08 max	0.02 max	0.02 max	0.35 max	20.0 - 22.5	0.50 max	2.0-6.0	2.5 max	Remainder	12.5 - 14.5	2.5 - 3.5

Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
100	45	45

Physical Performance

	Units	Temperature in°C
Density	8.69 g/cm³	24°C
Specific Heat	0.093 Kcal/kg.C	52°
Melting Range	1357-1399°C	-
Modulus of Elasticity	205.5 KN/mm²	-
Electrical Resistivity	113.7 µΩ.cm	24 °
Coefficient of Expansion	12.4 µm/m °C	24-93°
Thermal Conductivity	10.1 w/m-° K	48°

Scope of Application

C- 22 alloy is used in pesticide production, phosphoric acid production, pickling system, plate heat exchanger, selective leaching system, SO2 cooling tower, sulfonation system, shell and tube heat exchanger, surfacing welding valve, etc.
