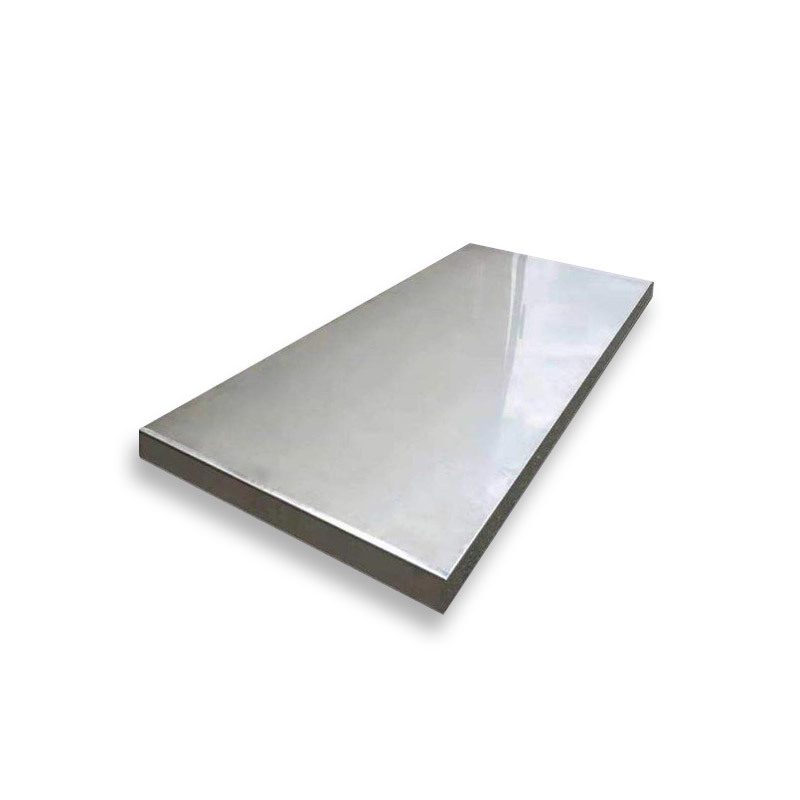

Hastelloy C-276 Plate
- China
- 15-25 Working Days
- Factory Direct Supply
Hastelloy C276 plate is a high-performance metal material with excellent corrosion resistance and mechanical properties. It is widely used in metal materials under high temperature, high pressure, and corrosive environments, such as petrochemical, chemical fertilizer, nuclear industry and other fields.
E-mail：
admin@jinshugc.com
WhatsApp：
8615315750155
Hastelloy C-276 Plate
Hastelloy C276 plate is a high-performance metal material with excellent corrosion resistance and mechanical properties. It is widely used in metal materials under high temperature, high pressure, and corrosive environments, such as petrochemical, chemical fertilizer, nuclear industry and other fields.
Hastelloy C-276 PlateDescription
Hastelloy C276 is a nickel-based alloy that has excellent corrosion resistance and high temperature strength. Due to its unique composition and specially processed processing technology, Hastelloy C276 plate can maintain stable performance in various harsh environments. Its high corrosion resistance makes it widely used in the marine, chemical and petroleum industries. In high-temperature environments, the strength and ductility of Hastelloy C276 can maintain a high level, which allows it to maintain stable performance in high-temperature environments. In addition, the welding performance of Hastelloy C276 alloy is also very good and it can be connected through various welding processes. Due to the particularity of its composition and processing technology, the processing of Hastelloy C276 requires special equipment and technology.
Product Parameters
Product Name | Hastelloy C-276 Plate |
Thickness | 0.3mm-200mm |
Length | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc. |
Width | 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc. |
Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. |
Surface | BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc. |
Certificate | ISO, SGS, BV |
Production Technology | Hot Rolling, Cold Rolling |
Chemical Composition
C | P | Si | S | V | Cr | Mn | Fe | Co | Ni | Mo | W |
0.01 max | 0.08 max | 0.04 max | 0.03 max | 0.35 max | 14.5 - 16.5 | 1.0 max | 4.0 - 7.0 | 2.5 max | Remainder | 15.0 - 17.0 | 3.0 - 4.5 |
Mechanical Properties
Tensile Strength (ksi) | 0.2% Yield Strength (ksi) | Elongation% in 2 inches |
100 | 41 | 40 |
Physical Performance
| Units | Temperature in°C |
Density | 8.69 g/cm³ | 22° |
Specific Heat | 0.102 Kcal/kg.C | Room |
Melting Range | 1323-1371°C | - |
Modulus of Elasticity | 205 KN/mm² | Room |
Electrical Resistivity | 129.5 µΩ.cm | 24° |
Coefficient of Expansion | 11.2 µm/m °C | 24-93° |
Thermal Conductivity | 10.2 w/m-° K | 38° |
Scope of Application
C- 276 alloys are mostly used as part of the most severe situations, for example, chemical processing, pollution control, pulp and paper production; industrial and municipal waste treatment and acid natural gas recovery.
