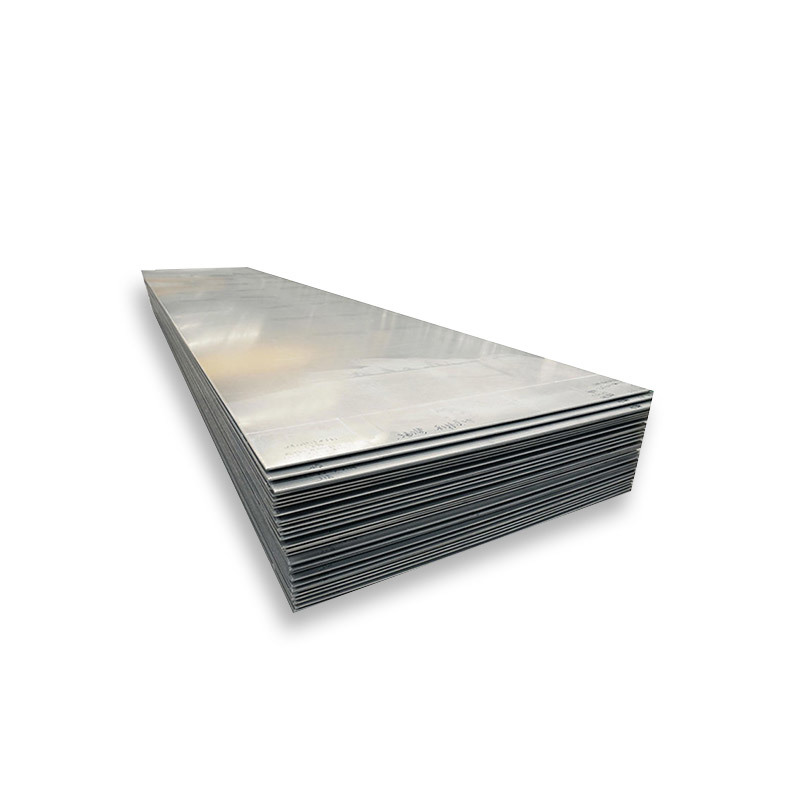

Nickel Alloy 200 Plate
- China
- 15-25 Working Days
- Factory Direct Supply
Nickel Alloy 200 plate is made of a pure nickel alloy with a chemical composition containing a minimum of 99% nickel. This alloy is the purest nickel alloy and is often chosen for use inly corrosive environments.
E-mail：
admin@jinshugc.com
WhatsApp：
8615315750155
Nickel Alloy 200 Plate
Nickel Alloy 200 plate is made of a pure nickel alloy with a chemical composition containing a minimum of 99% nickel. This alloy is the purest nickel alloy and is often chosen for use inly corrosive environments.
Nickel Alloy 200 Plate Description
Nickel 200 is a high-purity metal consisting primarily of nickel with a purity of 99.0%. Due to its excellent physical and chemical properties, it is widely used in various fields. Nickel alloy 200 plate has high corrosion resistance, can withstand corrosion from various acid and alkali liquids, and maintains stable performance at high temperatures. In addition, nickel 200 plate has good thermal and electrical conductivity and is an important electrical and thermal conductive material. This metal can be processed and heated through various processes to make products of different shapes and specifications. Lastly, Nickel 200 is a pure commercial nickel with extremely low carbon content that has been approved for use in high temperature environments up to 1230°C.
Product Parameters
Product Name | Nickel Alloy 200 Plate |
Thickness | 0.3mm-200mm |
Length | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc. |
Width | 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc. |
Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. |
Surface | BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc. |
Certificate | ISO, SGS, BV |
Production Technology | Hot Rolling, Cold Rolling |
Chemical Composition
Gread | C | Si | S | Mn | Fe | Ni | Cu |
Alloy 200 | 0.15 max | 0.35 max | 0.01 max | 0.35 max | 0.4 max | 99.0 min | 0.25 max |
Mechanical Properties
Tensile Strength (ksi) | 0.2% Yield Strength (ksi) | Elongation% in 2 inches |
55 | 15 | 35 |
Physical Performance
| Units | Temperature in°C |
Density | 8.89 g/cm³ | Room |
Specific Heat | 0.108 Kcal/kg.C | Room |
Melting Range | 1435-1446°C | - |
Modulus of Elasticity | 205 KN/mm² | Room |
Electrical Resistivity | 9.6 µΩ.cm | 20° |
Coefficient of Expansion | 13.3 µm/m °C | 20 - 100° |
Thermal Conductivity | 70.3 w/m-° K | 20° |
Scope of Application
Used in electrical industry, chemical industry, heat exchanger, synthetic fiber processing, food processing, etc.
